SELECTOR LEVER COMPONENT INSPECTION


id051800800600

1.  Disconnect the negative battery cable.

2.  Remove the selector lever component. (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)

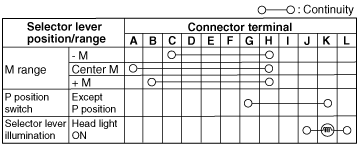

3.  Verify that the continuity is as indicated in the table.

am6zzw00002802

•  If there is any malfunction, replace the selector lever component. (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)
am6zzw00002916
