CABIN TEMPERATURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER]

id0740a1807800

1.  Disconnect the negative battery cable.

2.  Remove the driver’s side lower panel. (See LOWER PANEL REMOVAL/INSTALLATION.)

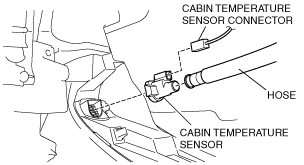

3.  Disconnect the cabin temperature sensor connector.

4.  Disconnect the hose.

5.  Remove the cabin temperature sensor.

am6zzw00001093

6.  Install in the reverse order of removal.
