LOWER PANEL REMOVAL/INSTALLATION

id091700801100

1.  Disconnect the negative battery cable.

2.  Remove the following parts:

(1)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(2)  Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(3)  Upper panel (See UPPER PANEL REMOVAL/INSTALLATION.)

(4)  Driver-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(5)  Bonnet release lever (See BONNET LATCH AND RELEASE LEVER REMOVAL/INSTALLATION.)

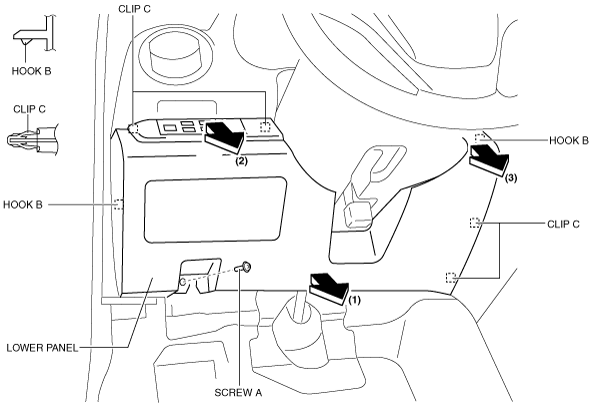

3.  Remove the screw A, pull the lower panel in the direction of the arrow in the order of (1) (2), (3) and remove the lower panel while detaching the hooks B and clips C.

L.H.D.

am6zzw00001349

R.H.D.

am6zzw00001350

4.  Disconnect the switch connector.

5.  Install in the reverse order of removal.
