DTC B112A:11 [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM]
id09021c404600
|
DETECTION CONDITION
|
Voltage lower than the specification (2.2—6.5 V) is detected for 0.1 s with the IG2 relay output circuit operating
|
|
POSSIBLE CAUSE
|
• Connector or terminal malfunction

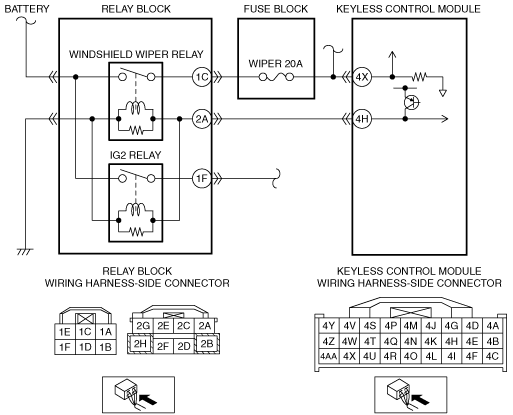

• Short circuit to ground in wiring harness between relay block connector terminal 2A and keyless control module connector terminal 4H
• Relay block malfunction
• Keyless control module malfunction
|
 |
|
Diagnostic Procedure
|
Step |
Inspection |
Action |
|
|---|---|---|---|
|
1
|
INSPECT RELAY BLOCK CONNECTOR CONDITION
• Switch the ignition to off.
• Disconnect the negative battery cable.
• Disconnect the relay block connector.
• Inspect the connector and terminals (corrosion, damage, pin disconnection).
• Is the connector normal?
|
Yes
|
Go to the next step.
|
|
No
|
Repair/replace the connector or terminal.After repair procedure, go to Step 5.
|
||
|
2
|
INSPECT RELAY BLOCK
• Inspect the relay block.
• Is the relay block normal?
|
Yes
|
Go to the next step.
|
|
No
|
Replace the relay block.
After replacement, go to Step 5.
|
||
|
3
|
INSPECT KEYLESS CONTROL MODULE CONNECTOR CONDITION
• Disconnect the keyless control module connector.
• Inspect the connector and terminals (corrosion, damage, pin disconnection).
• Is the connector normal?
|
Yes
|
Go to the next step.
|
|
No
|
Repair/replace the connector or terminal.
After repair procedure, go to Step 5.
|
||
|
4
|
INSPECT IG2 RELAY OUTPUT CIRCUIT FOR SHORT CIRCUIT TO GROUND
• Inspect for continuity between relay block connector terminal 2A and body ground.
• Is there continuity?
|
Yes
|
Repair/replace the wiring harness.
After repair procedure, go to the next step.
|
|
No
|
Go to the next step.
|
||
|
5
|
VERIFY DTC
• Reconnect the disconnected connectors and the negative battery cable.
• Clear DTC using the M-MDS.
• Verify DTC using the M-MDS.
• Is the same DTC present?
|
Yes
|
Repeat the inspection from Step 1.
If the malfunction recurs, replace the keyless control module.
(See KEYLESS CONTROL MODULE REMOVAL/INSTALLATION [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM].)
Go to the next step.
|
|
No
|
Go to the next step.
|
||
|
6
|
VERIFY THAT NO OTHER DTCs ARE PRESENT
• Are there other DTCs output?
|
Yes
|
Perform the corresponding DTC inspection.
|
|
No
|
DTC troubleshooting completed.
|
||
