KEYLESS CONTROL MODULE REMOVAL/INSTALLATION [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM]

id0914004384z3

1.  If the keyless control module is replaced, always perform the following procedure.

•  Vehicles with immobilizer system

―  Keyless Control Module Configuration (See KEYLESS CONTROL MODULE CONFIGURATION [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM].)

―  Immobilizer System-related Parts Programming [No.4 Programming Procedure Due to Keyless Control Module Replacement] (See IMMOBILIZER SYSTEM-RELATED PARTS PROGRAMMING [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM].)

•  Vehicles without immobilizer system

―  Keyless Control Module Configuration (See KEYLESS CONTROL MODULE CONFIGURATION [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM].)

―  Advanced Key Id Code Registration (See ADVANCED KEY ID CODE REGISTRATION [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM].)

―  Steering Lock Unit Id Code Registration (See STEERING LOCK UNIT ID CODE REGISTRATION [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM].)

2.  Disconnect the negative battery cable.

3.  Remove the front scuff plate. (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

4.  Remove the front side trim. (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

5.  Remove in the order indicated in the table.

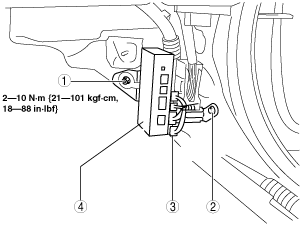

am6zzw00000858

1	Nut
2	Bolt
3	Connector
4	Keyless control module

6.  Install in the reverse order of removal.
