SECURITY LIGHT: NOT ILLUMINATED, DTC B10E6:11/- [IMMOBILIZER SYSTEM (ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM)]

id09021d905500

DTC

Security light flashing pattern

-

Voltage less than the specification (2.2—6.5 V) is detected for 0.5 s with the coil antenna power supply voltage operating

M-MDS display

Keyless control module

B10E6:11

PCM

-

POSSIBLE CAUSE

•  Short circuit to ground in wiring harness between coil antenna connector terminal A and keyless control module connector terminal 4Q

•  Short circuit to ground in wiring harness between coil antenna connector terminal B and keyless control module connector terminal 4Q

•  Keyless control module malfunction

•  Coil antenna malfunction

DTC	Security light flashing pattern	-	Voltage less than the specification (2.2—6.5 V) is detected for 0.5 s with the coil antenna power supply voltage operating
POSSIBLE CAUSE	• Short circuit to ground in wiring harness between coil antenna connector terminal A and keyless control module connector terminal 4Q • Short circuit to ground in wiring harness between coil antenna connector terminal B and keyless control module connector terminal 4Q • Keyless control module malfunction • Coil antenna malfunction

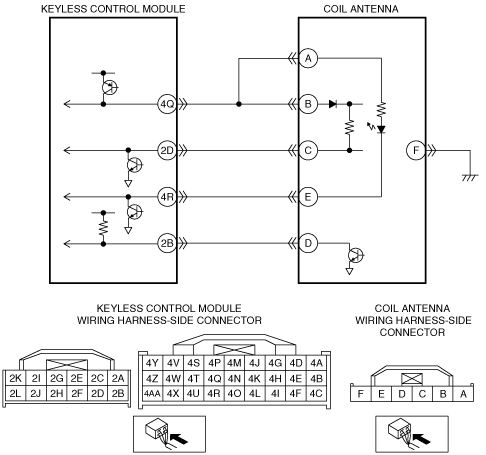

System Wiring Diagram

am6zzw00002075

Diagnostic Procedure

Step

Inspection

Action

1

INSPECT COIL ANTENNA CONNECTOR CONDITION

•  Switch the ignition to off.

•  Disconnect the negative battery cable.

•  Disconnect the coil antenna connector.

•  Inspect the connector and terminals (corrosion, damage, pin disconnection).

•  Is the connector normal?

Yes

Go to the next step.

No

Repair/replace the connector or terminal.

After repair procedure, go to Step 5.

2

INSPECT COIL ANTENNA POWER SUPPLY CIRCUIT FOR SHORT CIRCUIT TO GROUND

•  Reconnect the negative battery cable.

•  Switch the ignition to ON.

•  Measure the voltage at coil antenna connector terminal B.

•  Is the voltage 2.2 V or less?

Yes

Go to the next step.

No

Replace the coil antenna.

(See COIL ANTENNA REMOVAL/INSTALLATION [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM].)

After replacement, go to Step 5.

3

INSPECT KEYLESS CONTROL MODULE CONNECTOR CONDITION

•  Switch the ignition to off.

•  Disconnect the negative battery cable.

•  Disconnect the keyless control module connector.

•  Inspect the connector and terminals (corrosion, damage, pin disconnection).

•  Is the connector normal?

Yes

Go to the next step.

No

Repair/replace the connector or terminal.

After repair procedure, go to Step 5.

4

INSPECT COIL ANTENNA POWER SUPPLY CIRCUIT FOR SHORT CIRCUIT TO GROUND

•  Inspect for continuity between coil antenna connector terminal B and body ground.

•  Is there continuity?

Yes

Repair/replace the wiring harness.

After repair procedure, go to the next step.

No

Go to the next step.

5

VERIFY DTC

•  Reconnect the disconnected connectors and the negative battery cable.

•  Clear DTC using the M-MDS.
(See CLEARING DTC [IMMOBILIZER SYSTEM (ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM)].)

•  Verify DTC using the M-MDS.
(See DTC INSPECTION [IMMOBILIZER SYSTEM (ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM)].)

•  Is the same DTC present?

Yes

If the malfunction recurs, replace the keyless control module.

(See KEYLESS CONTROL MODULE REMOVAL/INSTALLATION [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM].)

Go to the next step.

No

Go to the next step.

6

VERIFY THAT NO OTHER DTCs ARE PRESENT

•  Are there other DTCs output?

Yes

Perform the corresponding DTC inspection.

No

DTC troubleshooting completed.

DTC	Security light flashing pattern		-	Voltage less than the specification (2.2—6.5 V) is detected for 0.5 s with the coil antenna power supply voltage operating
	M-MDS display	Keyless control module	B10E6:11
	M-MDS display	PCM	-
POSSIBLE CAUSE				• Short circuit to ground in wiring harness between coil antenna connector terminal A and keyless control module connector terminal 4Q • Short circuit to ground in wiring harness between coil antenna connector terminal B and keyless control module connector terminal 4Q • Keyless control module malfunction • Coil antenna malfunction

Step	Inspection		Action
1	INSPECT COIL ANTENNA CONNECTOR CONDITION • Switch the ignition to off. • Disconnect the negative battery cable. • Disconnect the coil antenna connector. • Inspect the connector and terminals (corrosion, damage, pin disconnection). • Is the connector normal?	Yes	Go to the next step.
1		No	Repair/replace the connector or terminal. After repair procedure, go to Step 5.
2	INSPECT COIL ANTENNA POWER SUPPLY CIRCUIT FOR SHORT CIRCUIT TO GROUND • Reconnect the negative battery cable. • Switch the ignition to ON. • Measure the voltage at coil antenna connector terminal B. • Is the voltage 2.2 V or less?	Yes	Go to the next step.
2		No	Replace the coil antenna. (See COIL ANTENNA REMOVAL/INSTALLATION [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM].) After replacement, go to Step 5.
3	INSPECT KEYLESS CONTROL MODULE CONNECTOR CONDITION • Switch the ignition to off. • Disconnect the negative battery cable. • Disconnect the keyless control module connector. • Inspect the connector and terminals (corrosion, damage, pin disconnection). • Is the connector normal?	Yes	Go to the next step.
3		No	Repair/replace the connector or terminal. After repair procedure, go to Step 5.
4	INSPECT COIL ANTENNA POWER SUPPLY CIRCUIT FOR SHORT CIRCUIT TO GROUND • Inspect for continuity between coil antenna connector terminal B and body ground. • Is there continuity?	Yes	Repair/replace the wiring harness. After repair procedure, go to the next step.
4		No	Go to the next step.
5	VERIFY DTC • Reconnect the disconnected connectors and the negative battery cable. • Clear DTC using the M-MDS. (See CLEARING DTC [IMMOBILIZER SYSTEM (ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM)].) • Verify DTC using the M-MDS. (See DTC INSPECTION [IMMOBILIZER SYSTEM (ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM)].) • Is the same DTC present?	Yes	If the malfunction recurs, replace the keyless control module. (See KEYLESS CONTROL MODULE REMOVAL/INSTALLATION [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM].) Go to the next step.
5		No	Go to the next step.
6	VERIFY THAT NO OTHER DTCs ARE PRESENT • Are there other DTCs output?	Yes	Perform the corresponding DTC inspection.
6		No	DTC troubleshooting completed.
