NAVIGATION CHECK [CAR-NAVIGATION SYSTEM]

id0902f7410400

Inspection item list

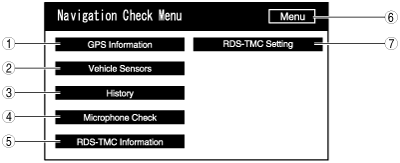

am6zzw00002782

No.	Name	Content/function
1	GPS Information	Display the GPS information.
2	Vehicle Sensors	Display the vehicle sensors.
3	History	Display the history.
4	Microphone Check	Verify the microphone condition.
5	RDS-TMC information (With RDS (radio data system))	Caution •  This item does not operate because it is a manufacturer exclusive item.
6	Menu	Return to the Diagnosis Menu.
7	RDS-TMC Setting (With RDS (radio data system))	Caution •  This item does not operate because it is a manufacturer exclusive item.

GPS Information

1.  Switch the ignition to ACC or ON.

2.  Launch the diagnostic mode. (See STARTING PROCEDURE FOR DIAGNOSTIC MODE [CAR-NAVIGATION SYSTEM].)

3.  Select “Navigation Check”.

4.  Select “GPS Information”.

5.  Verify the GPS information.

Note

•  The GPS reception signal is updated every 1 s.

6.  To stop the on-board diagnostic mode, ignition is switched to off.

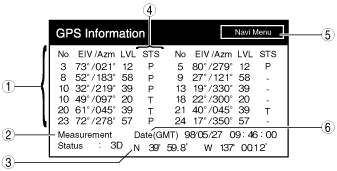

am6zzw00002788

No.	Name	Content/function
1	Satellite information	Display “No (satellite number)”, “elevation angle”, “azimuth”, “signal level” for the satellite.
2	Positioning condition	Display any one of the following: •   [2D]: During two-dimensional positioning •   [3D]: During three-dimensional positioning •  [NG]: When positioning data is unavailable •  [error]: During reception error occurrence •   [—]: Other than the above
3	Position	Display the latitude and longitude of the current position.
4	GPS reception condition	Display any one of the following: •  [P]: If the applicable satellite is being used in the vehicle’s current position. •  [T]: If receiving but not being used in the vehicle’s current position •   [—]: If reception is not possible from applicable satellite
5	Navi Menu	Return to the Navigation Check Menu.
6	Day and time	Display the day/time information

Vehicle Sensors

1.  Switch the ignition to ACC or ON.

2.  Launch the diagnostic mode. (See STARTING PROCEDURE FOR DIAGNOSTIC MODE [CAR-NAVIGATION SYSTEM].)

3.  Select “Navigation Check”.

4.  Select “Vehicle Sensors”.

5.  Verify the sensor output condition of the sensor being input to the car navigation unit.

Note

•  The vehicle signal is updated every 1s.

6.  To stop the on-board diagnostic mode, ignition is switched to off.

am6zzw00004090

No.	Name	Content/function
1	Navi Menu	Return to the Navigation Check Menu.
2	Gyro Voltage	Display the gyro sensor voltage
3	Relative bearing	Display the gyro sensor relative bearing
4	Reset	Reset the following display items, and the display content to 0. •  Gyro sensor voltage •  Gyro sensor relative bearing

History

1.  Switch the ignition to ACC or ON.

2.  Launch the diagnostic mode. (See STARTING PROCEDURE FOR DIAGNOSTIC MODE [CAR-NAVIGATION SYSTEM].)

3.  Select “Navigation Check”.

4.  Select “History”.

5.  Verify the displayed content.

6.  To stop the on-board diagnostic mode, ignition is switched to off.

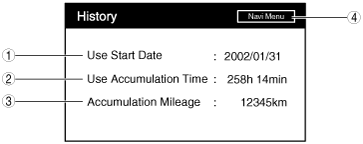

am6zzw00004662

No.	Name	Content/function
1	Use Start Date	Display the date for the start of use.
2	Use Accumulation Time	Display the accumulated use time.
3	Accumulation Mileage	Display the accumulated travel distance.
4	Navi Menu	Return to the Navigation Check Menu.

Microphone Check

1.  Switch the ignition to ACC or ON.

2.  Launch the diagnostic mode. (See STARTING PROCEDURE FOR DIAGNOSTIC MODE [CAR-NAVIGATION SYSTEM].)

3.  Select “Navigation Check”.

4.  Select “Microphone Check”.

5.  Verify the microphone input condition.

6.  To stop the on-board diagnostic mode, ignition is switched to off.

am6zzw00004091

No.	Name	Content/function
1	Navi Menu	Return to the Navigation Check Menu.
2	Voice recognition/hands-free switch (with RDS (radio data system))/Voice switch (without RDS (radio data system)) status	Display the voice recognition/hands-free switch (with RDS (radio data system))/Voice switch (without RDS (radio data system)) condition.
3	Microphone inspection results indicator	Display the microphone inspection results
4	Microphone input level gauge	Display the volume at 8 levels.
