REAR BUMPER REMOVAL/INSTALLATION

id091000405300

4SD, 5HB

1.  Disconnect the negative battery cable.

2.  Remove the splash shield. (See SPLASH SHIELD REMOVAL/INSTALLATION)

3.  Remove the rear combination light. (See REAR COMBINATION LIGHT REMOVAL/INSTALLATION)

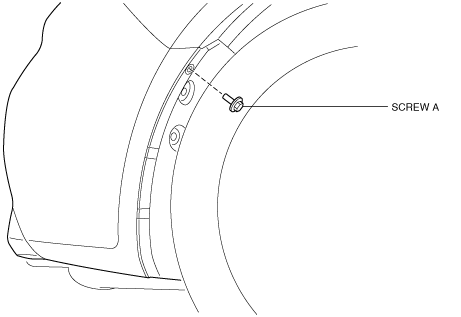

4.  Remove the screws A.

am6zzw00001317

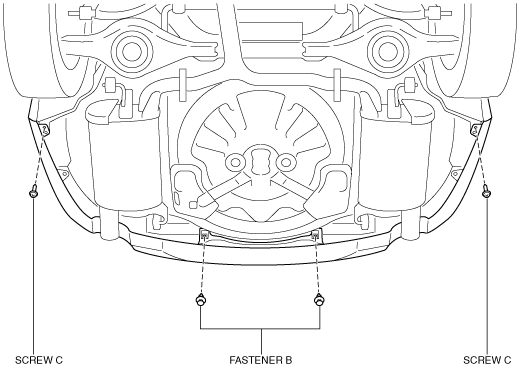

5.  Remove the fasteners B and screws C.

am6zzw00001318

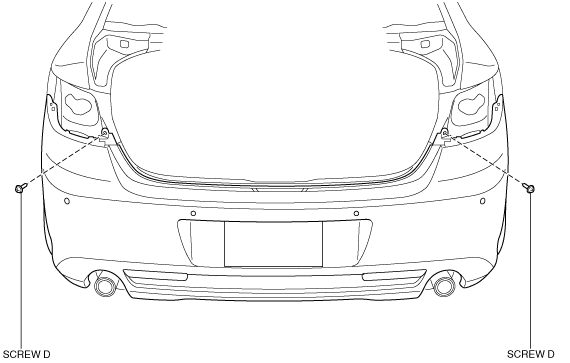

6.  Remove the screws D.

am6zzw00001319

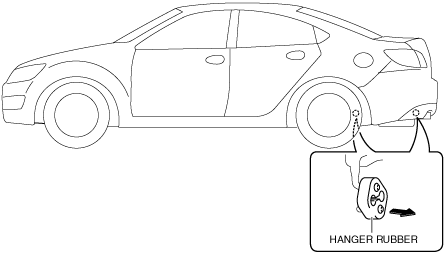

7.  Remove the hanger rubber.

am6zzw00004040

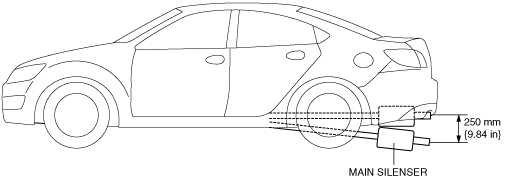

8.  Lower the main silencer to the position shown in the figure.

am6zzw00004041

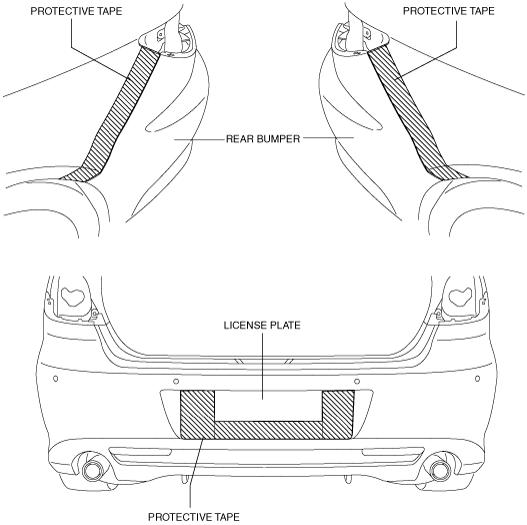

9.  Affix the protective tape to the position shown in the figure.

am6zzw00004042

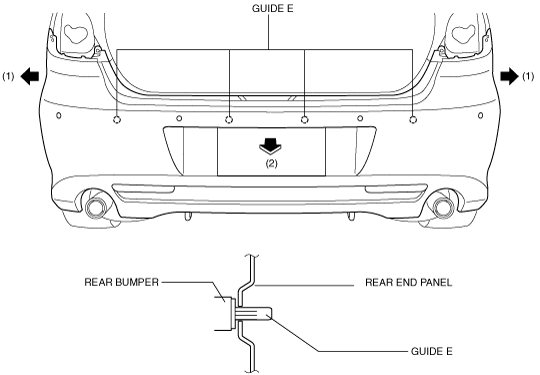

10.  Pull the rear bumper in the direction of arrow (1) shown in the figure to disengage the bumper from the rear bumper slider, then remove the rear bumper in the direction of arrow (2) while detach the guide E.

am6zzw00001320

Caution

•  When disengaging the rear bumper from the rear bumper slider, the rear bumper could fall and be damaged. Support the rear bumper so that it does not fall.

11.  Disconnect the rear fog light connector. (Vehicles with rear fog light)

12.  Disconnect the license plate light connector.

13.  Disconnect the ultrasonic sensor connector. (Vehicles with parking sensor)

14.  Remove the guide E form the rear bumper.

15.  Install in the reverse order of removal. (See Guide E Installation Note)

Wagon

1.  Disconnect the negative battery cable.

2.  Remove the splash shield. (See SPLASH SHIELD REMOVAL/INSTALLATION)

3.  Remove the rear combination light. (See REAR COMBINATION LIGHT REMOVAL/INSTALLATION)

4.  Remove the screws A.

am6zzw00001317

5.  Remove the fasteners B and screws C.

am6zzw00001318

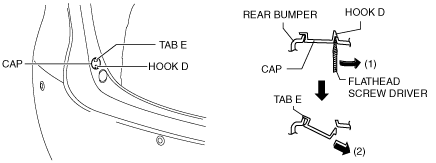

6.  Use the tape-wrapped flathead screw driver, detaching hook D in the direction of the arrow(1) shown in the figure.

am6zzw00004602

7.  Pull the cap in the direction of the arrow(2) shown in the figure and remove it while remove the tab E.

Caution

•  When removing the cap, be careful not to damage the tab E.

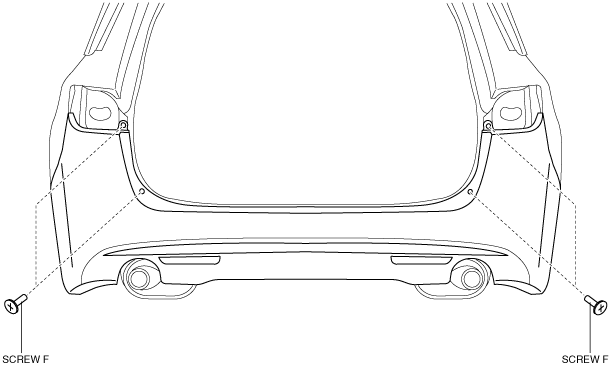

8.  Remove the screws F.

am6zzw00003680

9.  Affix the protective tape to the position shown in the figure.

am6zzw00004043

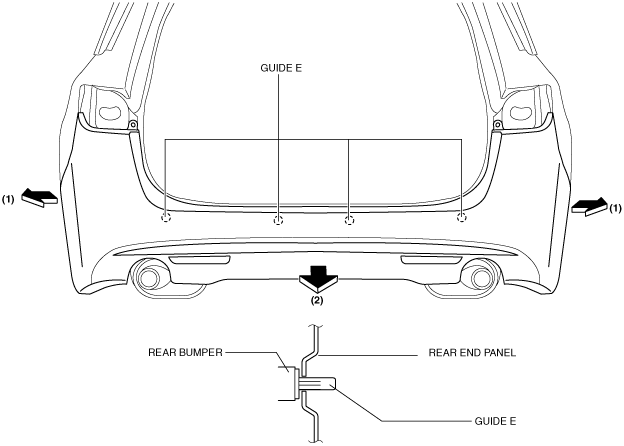

10.  Pull the rear bumper in the direction of arrow (1) shown in the figure to disengage the bumper from the rear bumper slider, then remove the rear bumper in the direction of arrow (2) while detach the guide E.

am6zzw00001323

Caution

•  When disengaging the rear bumper from the rear bumper slider, the rear bumper could fall and be damaged. Support the rear bumper so that it does not fall.

11.  Disconnect the rear fog light connector. (Vehicles with rear fog light)

12.  Disconnect the ultrasonic sensor connector. (Vehicles with parking sensor)

13.  Install in the reverse order of removal.

Rear Bumper Installation Note

1.  Spread the rear bumper ends apart.

2.  Assemble the rear bumper to the body.

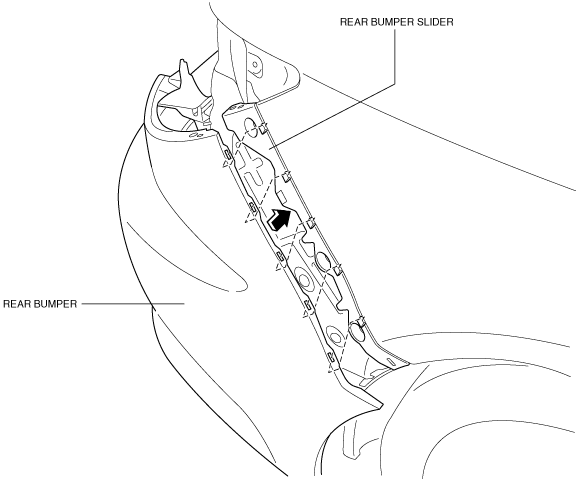

3.  Press the rear bumper connecting area in the direction of the arrow shown in the figure to engage with the bumper slider.

am6zzw00001321

Guide E Installation Note

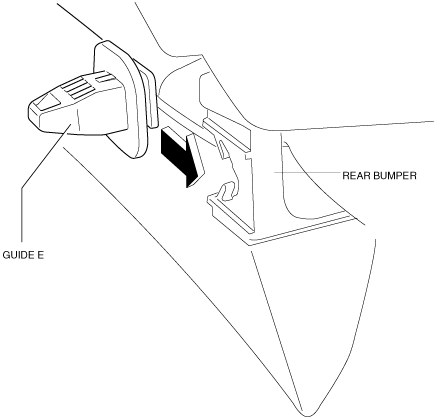

1.  Insert the license plate, and install the guide E indication in the arrow shown in the figure.

am6zzw00004044
