TRUNK LID REMOVAL/INSTALLATION

id091000801600

Warning

•  Removing the stay damper without supporting the trunk lid can be dangerous. The trunk lid may fall and injure you. Open the trunk lid fully and support it before removing the stay damper.

1.  Disconnect the negative battery cable.

2.  Remove the trunk lid trim. (See TRUNK LID TRIM REMOVAL/INSTALLATION)

3.  Disconnect the harness connector.

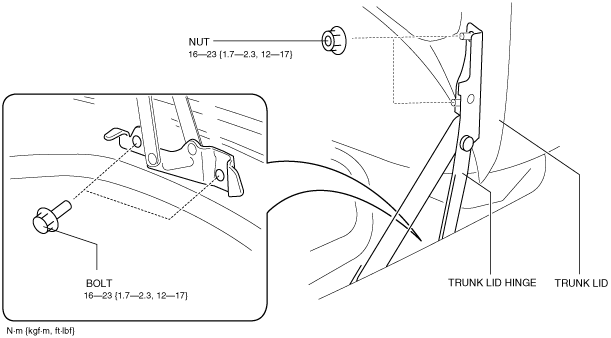

4.  Remove the nuts, then remove the trunk lid.

am6zzw00000428

5.  Remove the bolts, then remove the trunk lid hinge.

6.  Install in the reverse order of removal.

7.  Adjust the trunk lid. (See TRUNK LID ADJUSTMENT.)
