TRUNK LID ADJUSTMENT

id091000801700


Gap Adjustment

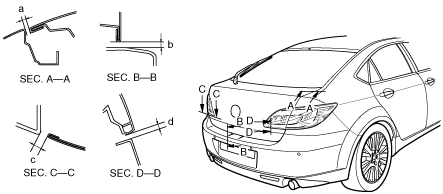

1.  Measure the gap difference between the trunk lid and the body.

2.  If not as specified, loosen the trunk lid hinge installation bolts or the trunk lid lock striker installation bolts, and reposition the trunk lid.

am6zzw00001311

Standard Clearance
a: 2.5—4.5 mm {0.10—0.18 in}
b: 4.0—8.0 mm {0.16—0.31 in}
c: 1.9—5.3 mm {-0.08—0.20 in}
d: 0.1—2.3 mm {0.004—0.090 in}

3.  Tighten the bolts or nuts. (See TRUNK LID REMOVAL/INSTALLATION) (See TRUNK LID LOCK STRIKER REMOVAL/INSTALLATION)


Hight Difference Adjustment

1.  Measure the height difference between the trunk lid and the body.

am6zzw00001312

Standard Clearance
a: -1.5—0.5 mm {-0.05—0.02 in}
b: -2.1—1.9 mm {-0.082—0.074 in}

2.  Turn the stop rubber to adjust.
