SEAT WARMER SWITCH REMOVAL/INSTALLATION


id091300801200

1.  Disconnect the negative battery cable.

2.  Remove the upper panel. (See UPPER PANEL REMOVAL/INSTALLATION.)

3.  Remove the decoration panel. (See DECORATION PANEL REMOVAL/INSTALLATION.)

4.  Remove the center panel lower. (See CENTER PANEL LOWER REMOVAL/INSTALLATION)

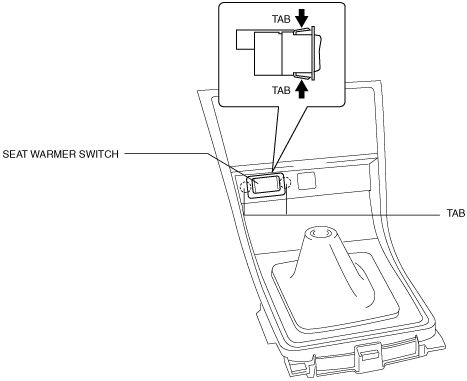

5.  Squeeze the tabs of seat warmer switch and pull it outward to remove it.

am6zzw00002274

6.  Remove the seat warmer switch.

7.  Install in the reverse order of removal.
