KEYLESS BEEPER INSPECTION [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM]

id0914004416z3

1.  Disconnect the negative battery cable.

2.  Remove the keyless beeper. (See KEYLESS BEEPER REMOVAL/INSTALLATION [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM].)

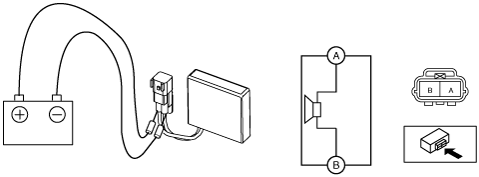

3.  Apply battery positive voltage and connect the ground to each terminal and verify the keyless beeper sound operation.

•  If the beep sound cannot be verified, replace the keyless beeper.

adejjw00003254
