EXTRACTOR CHAMBER REMOVAL/INSTALLATION


id091600801500

1.  Disconnect the negative battery cable.

2.  Remove the rear combination light. (See REAR COMBINATION LIGHT REMOVAL/INSTALLATION.)

3.  Remove the rear bumper. (See REAR BUMPER REMOVAL/INSTALLATION.)

4.  Insert a fastener remover in the position indicated by the arrow in the figure and detach tabs.

am6zzw00000920

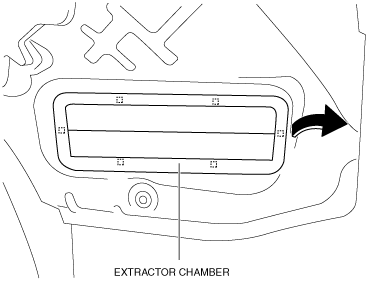

5.  Remove the extractor chamber in the direction of the arrow shown in the figure.

am6zzw00000919

6.  Install in the reverse order of removal.
