REAR MUDGUARD REMOVAL/INSTALLATION

id091600812400

1.  Remove the rear flap. (Vehicles with rear flap) (See REAR FLAP REMOVAL/INSTALLATION)

2.  Remove the splash shield. (See SPLASH SHIELD REMOVAL/INSTALLATION )

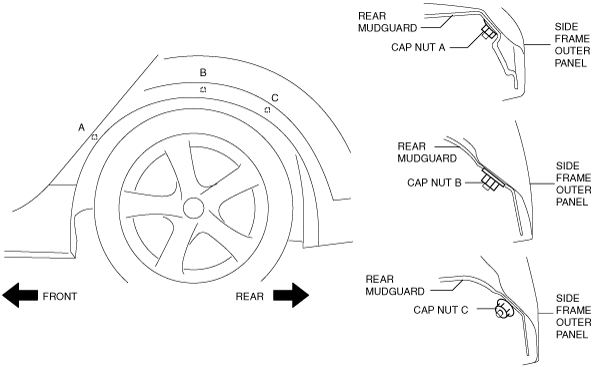

3.  Remove the cap nut A, B and C.

am6zzw00004563

4.  Remove the cap nuts D, E and F, then remove the rear mudguard in the direction of the arrow shown in the figure.

am6zzw00000706

5.  Install in the reverse of removal.
