TIRE HOUSE TRIM REMOVAL/INSTALLATION

id091700802700

4SD

1.  Remove the rear scuff plate. (See REAR SCUFF PLATE REMOVAL/INSTALLATION)

2.  Remove the rear seat cushion. (See REAR SEAT CUSHION REMOVAL/INSTALLATION [4SD])

3.  Remove the rear side seat back. (See REAR SIDE SEAT BACK REMOVAL/INSTALLATION)

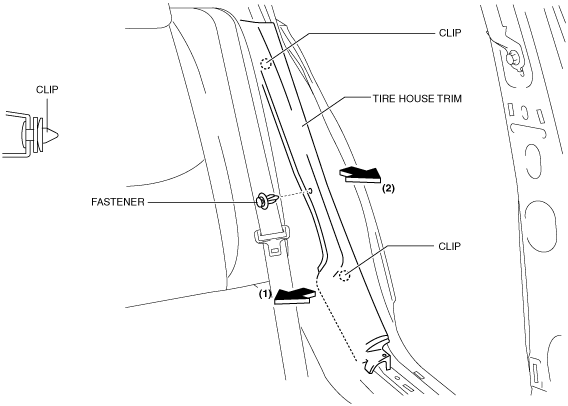

4.  Remove the fastener.

am6zzw00001705

5.  Pull the tire house trim in the direction of the arrow (1) shown in the figure and remove it while detaching the clips, remove the tire house trim in the direction of the arrow (2).

6.  Install in the reverse order of removal.

5HB

1.  Remove the rear scuff plate. (See REAR SCUFF PLATE REMOVAL/INSTALLATION)

2.  Fold the rear seat back.

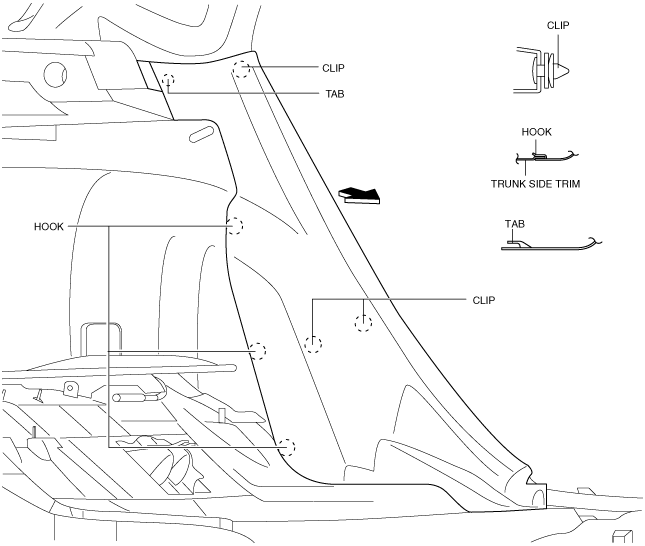

3.  Pull the tire house trim in the direction of the arrow shown in the figure and remove it while detaching the clips and hooks.

am6zzw00002684

4.  Remove the tire house trim.

5.  Install in the reverse order of removal.

Wagon

1.  Remove the rear scuff plate. (See REAR SCUFF PLATE REMOVAL/INSTALLATION)

2.  Fold the rear seat back.

3.  Pull the tire house trim in the direction of the arrow shown in the figure and remove it while detaching the clips and hooks.

am6zzw00002600

4.  Remove the tire house trim.

5.   Install in the reverse order of removal.
