REAR PACKAGE TRIM REMOVAL/INSTALLATION

id091700802800

1.  Remove the following parts:

(1)  Rear side seat back (See REAR SIDE SEAT BACK REMOVAL/INSTALLATION.)

(2)  Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

(3)  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

(4)  Rear seat cushion. (See REAR SEAT CUSHION REMOVAL/INSTALLATION [4SD])

2.  Fold the rear seat back.

3.  Remove the fasteners.

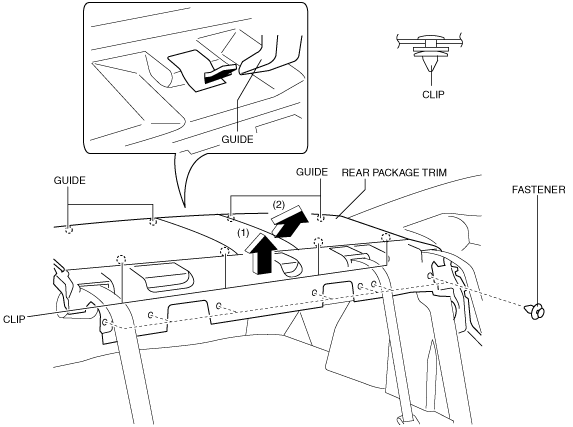

am6zzw00001714

4.  Pull up the rear package trim in the direction of the arrow (1) shown in the figure to remove the clips, pull the rear package trim in the direction of the arrow (2), and remove it while pulling out the guides.

5.  Install in the reverse order of removal.
