BACK-UP LIGHT SWITCH REMOVAL/INSTALLATION


id091800800200

1.  Disconnect the negative battery cable.

2.  Remove the under cover.

3.  Drain the oil. (See TRANSAXLE OIL REPLACEMENT [G35M-R].) (See TRANSAXLE OIL REPLACEMENT [G66M-R].)

4.  Disconnect the back-up light switch connector and remove the back-up light switch.

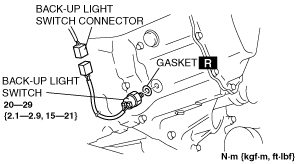

am6zzw00002731

5.  Install in the reverse order of removal.

6.  Refill the oil. (See TRANSAXLE OIL REPLACEMENT [G35M-R].) (See TRANSAXLE OIL REPLACEMENT [G66M-R].)
