HAZARD WARNING SWITCH REMOVAL/INSTALLATION


id091800803000

1.  Disconnect the negative battery cable.

2.  Remove the center panel upper. (See CENTER PANEL UPPER REMOVAL/INSTALLATION.)

3.  Disconnect the hazard warning switch connector.

am3zzw00003663

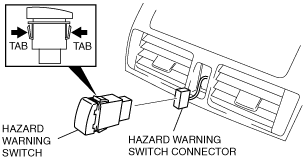

4.  Squeeze the tabs of hazard warning switch and pull it outward to remove it.

5.  Install in the reverse order of removal.
