AUTO LIGHT/WIPER CONTROL MODULE INSPECTION

id091800809500

1. Remove the following parts:

(1) Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(2) Upper panel (See UPPER PANEL REMOVAL/INSTALLATION.)

(3) Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(4) Center panel lower (See CENTER PANEL LOWER REMOVAL/INSTALLATION.)

(5) Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(6) Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)

2. Remove the auto light/wiper control module with the connector connected.

3. Measure the voltage at each terminal is as indicated in the Terminal Voltage Lists.

• If the voltage is not as specified in the Terminal Voltage Lists, inspect the parts under “Inspection item (s)”.

― If the system does not work properly even though the parts or related wiring harnesses do not have any malfunction, replace the auto light/wiper control module.

Terminal Voltage List (Reference)

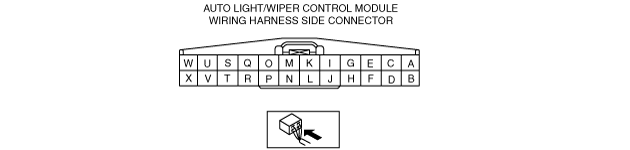

am6zzw00002412

Terminal

Signal

Connection

Test condition

Voltage (V)/Continuity

Action

A

Power supply

METER IG 15 A fuse

Ignition switch at ON

B+

•  METER IG 15 A fuse

•  Related wiring harness

Ignition switch at OFF

1.0 or less

B

TNS signal 1

ILLUMI 7.5 A fuse

TNS ON

B+

•  ILLUMI 7.5 A fuse

•  Related wiring harness

TNS OFF

1.0 or less

C

Headlight (LO) relay on/off

Headlight low relay

Ignition switch at ON

Light switch at Lo or Hi position

1.0 or less

•  Headlight low relay

•  Related wiring harness

Other

B+

D

TNS signal 2

Illumination light

TNS ON

B+

•  Illumination light

•  Related wiring harness

TNS OFF

1.0 or less

E

TNS relay on/off

BCM (TNS relay)

Ignition switch at ON

Light switch at TNS position

1.0 or less

•  BCM (TNS relay)

•  Related wiring harness

Other

B+

F

Headlight switch signal (AUTO)

Light switch

Ignition switch at ON

Light switch at AUTO position

1.0 or less

•  Light switch

•  Related wiring harness

Other

B+

G

F.FOG on/off

Front fog light relay

Ignition switch at ON

Fog light switch at F.FOG position

1.0 or less

•  Front fog light relay

•  Related wiring harness

Other

B+

H

F.FOG switch signal

Fog light switch

Headlight ON

Fog light switch at F.FOG position

1.0 or less

•  Fog light switch

•  Related wiring harness

Other

B+

I

R.FOG on/off

BCM

Ignition switch at ON

Fog light switch at R.FOG position

1.0 or less

•  BCM

•  Related wiring harness

Other

B+

J

R.FOG switch signal

Fog light switch

Headlight ON

Fog light switch at R.FOG position

1.0 or less

•  Fog light switch

•  Related wiring harness

Other

B+

K

Windshield wiper switch signal (LO)

Windshield wiper and washer switch

Ignition switch at ON

Windshield wiper switch at LO position

1.0 or less

•  Windshield wiper and washer switch

•  Related wiring harness

Windshield wiper switch at OFF position

B+

L

GND

Body ground

Under any condition

1.0 or less

•  Related wiring harness

M

Windshield wiper switch signal (HI)

Windshield wiper and washer switch

Ignition switch at ON

Windshield wiper switch at HI position

1.0 or less

•  Windshield wiper and washer switch

•  Related wiring harness

Windshield wiper switch at OFF position

B+

N

Wiper speed volume signal

BCM

Voltage decreases when speed control volume is turned from - position to + position

Switch position 1 position

4.67

•  BCM

•  Related wiring harness

Switch position 2 position

1.75

Switch position 3 position

0.80

Switch position 4 position

0.34

Switch position 5 position

0.12

Switch position 6 position

0.01

O

Washer switch signal

Windshield wiper and washer switch

Ignition switch at ON

Washer switch at ON position

1.0 or less

•  Windshield wiper and washer switch

•  Related wiring harness

Washer switch at OFF position

B+

P

Windshield wiper switch input

BCM

Switch the ignition to On.

Wiper switch in INT position

1.0 or less

•  BCM

•  Related wiring harness

Other

B+

Q

DLC-2 power supply

DLC-2

Under any condition

B+

•  Related wiring harness

R

Headlight (HI) relay on/off

Headlight high relay

Ignition switch at ON

Light switch at Hi or Pass position

1.0 or less

•  Headlight high relay

•  Related wiring harness

Other

B+

S

Sensitivity adjustment volume

Windshield wiper and washer switch

Voltage decreases when speed control volume is turned from - position to + position

Switch position 1 position

4.67

•  Windshield wiper and washer switch

•  Related wiring harness

Switch position 2 position

1.75

Switch position 3 position

0.80

Switch position 4 position

0.34

Switch position 5 position

0.12

Switch position 6 position

0.01

T

Headlight switch signal

Light switch

Light switch at headlight position

1.0 or less

•  Light switch

•  Related wiring harness

Light switch at OFF position

B+

U

Wiper or headlight operation request

Rain sensor

Because this terminal is for communication, good/no good judgment by terminal voltage is not possible.

V

Windshield wiper switch signal (AUTO)

Windshield wiper and washer switch

Ignition switch at ON

Windshield wiper switch at AUTO position

1.0 or less

•  Windshield wiper and washer switch

•  Related wiring harness

Windshield wiper switch at OFF position

B+

W

Wiper motor auto stop input signal

BCM

Wiper auto stop at ON

1.0 or less

•  BCM

•  Related wiring harness

Wiper auto stop at OFF

B+

X

Vehicle speed signal input

Instrument cluster

Because this terminal is for communication, good/no good judgment by terminal voltage is not possible.

Terminal	Signal	Connection	Test condition		Voltage (V)/Continuity	Action
A	Power supply	METER IG 15 A fuse	Ignition switch at ON		B+	• METER IG 15 A fuse • Related wiring harness
A	Power supply	METER IG 15 A fuse	Ignition switch at OFF		1.0 or less	• METER IG 15 A fuse • Related wiring harness
B	TNS signal 1	ILLUMI 7.5 A fuse	TNS ON		B+	• ILLUMI 7.5 A fuse • Related wiring harness
B	TNS signal 1	ILLUMI 7.5 A fuse	TNS OFF		1.0 or less	• ILLUMI 7.5 A fuse • Related wiring harness
C	Headlight (LO) relay on/off	Headlight low relay	Ignition switch at ON	Light switch at Lo or Hi position	1.0 or less	• Headlight low relay • Related wiring harness
C	Headlight (LO) relay on/off	Headlight low relay	Ignition switch at ON	Other	B+	• Headlight low relay • Related wiring harness
D	TNS signal 2	Illumination light	TNS ON		B+	• Illumination light • Related wiring harness
D	TNS signal 2	Illumination light	TNS OFF		1.0 or less	• Illumination light • Related wiring harness
E	TNS relay on/off	BCM (TNS relay)	Ignition switch at ON	Light switch at TNS position	1.0 or less	• BCM (TNS relay) • Related wiring harness
E	TNS relay on/off	BCM (TNS relay)	Ignition switch at ON	Other	B+	• BCM (TNS relay) • Related wiring harness
F	Headlight switch signal (AUTO)	Light switch	Ignition switch at ON	Light switch at AUTO position	1.0 or less	• Light switch • Related wiring harness
F	Headlight switch signal (AUTO)	Light switch	Ignition switch at ON	Other	B+	• Light switch • Related wiring harness
G	F.FOG on/off	Front fog light relay	Ignition switch at ON	Fog light switch at F.FOG position	1.0 or less	• Front fog light relay • Related wiring harness
G	F.FOG on/off	Front fog light relay	Ignition switch at ON	Other	B+	• Front fog light relay • Related wiring harness
H	F.FOG switch signal	Fog light switch	Headlight ON	Fog light switch at F.FOG position	1.0 or less	• Fog light switch • Related wiring harness
H	F.FOG switch signal	Fog light switch	Headlight ON	Other	B+	• Fog light switch • Related wiring harness
I	R.FOG on/off	BCM	Ignition switch at ON	Fog light switch at R.FOG position	1.0 or less	• BCM • Related wiring harness
I	R.FOG on/off	BCM	Ignition switch at ON	Other	B+	• BCM • Related wiring harness
J	R.FOG switch signal	Fog light switch	Headlight ON	Fog light switch at R.FOG position	1.0 or less	• Fog light switch • Related wiring harness
J	R.FOG switch signal	Fog light switch	Headlight ON	Other	B+	• Fog light switch • Related wiring harness
K	Windshield wiper switch signal (LO)	Windshield wiper and washer switch	Ignition switch at ON	Windshield wiper switch at LO position	1.0 or less	• Windshield wiper and washer switch • Related wiring harness
K	Windshield wiper switch signal (LO)	Windshield wiper and washer switch	Ignition switch at ON	Windshield wiper switch at OFF position	B+
L	GND	Body ground	Under any condition		1.0 or less	• Related wiring harness
M	Windshield wiper switch signal (HI)	Windshield wiper and washer switch	Ignition switch at ON	Windshield wiper switch at HI position	1.0 or less	• Windshield wiper and washer switch • Related wiring harness
M	Windshield wiper switch signal (HI)	Windshield wiper and washer switch	Ignition switch at ON	Windshield wiper switch at OFF position	B+
N	Wiper speed volume signal	BCM	Voltage decreases when speed control volume is turned from - position to + position	Switch position 1 position	4.67	• BCM • Related wiring harness
				Switch position 2 position	1.75
				Switch position 3 position	0.80
				Switch position 4 position	0.34
				Switch position 5 position	0.12
				Switch position 6 position	0.01
O	Washer switch signal	Windshield wiper and washer switch	Ignition switch at ON	Washer switch at ON position	1.0 or less	• Windshield wiper and washer switch • Related wiring harness
O	Washer switch signal	Windshield wiper and washer switch	Ignition switch at ON	Washer switch at OFF position	B+
P	Windshield wiper switch input	BCM	Switch the ignition to On.	Wiper switch in INT position	1.0 or less	• BCM • Related wiring harness
P	Windshield wiper switch input	BCM	Switch the ignition to On.	Other	B+	• BCM • Related wiring harness
Q	DLC-2 power supply	DLC-2	Under any condition		B+	• Related wiring harness
R	Headlight (HI) relay on/off	Headlight high relay	Ignition switch at ON	Light switch at Hi or Pass position	1.0 or less	• Headlight high relay • Related wiring harness
R	Headlight (HI) relay on/off	Headlight high relay	Ignition switch at ON	Other	B+	• Headlight high relay • Related wiring harness
S	Sensitivity adjustment volume	Windshield wiper and washer switch	Voltage decreases when speed control volume is turned from - position to + position	Switch position 1 position	4.67	• Windshield wiper and washer switch • Related wiring harness
				Switch position 2 position	1.75
				Switch position 3 position	0.80
				Switch position 4 position	0.34
				Switch position 5 position	0.12
				Switch position 6 position	0.01
T	Headlight switch signal	Light switch	Light switch at headlight position		1.0 or less	• Light switch • Related wiring harness
T	Headlight switch signal	Light switch	Light switch at OFF position		B+	• Light switch • Related wiring harness
U	Wiper or headlight operation request	Rain sensor	Because this terminal is for communication, good/no good judgment by terminal voltage is not possible.
V	Windshield wiper switch signal (AUTO)	Windshield wiper and washer switch	Ignition switch at ON	Windshield wiper switch at AUTO position	1.0 or less	• Windshield wiper and washer switch • Related wiring harness
V	Windshield wiper switch signal (AUTO)	Windshield wiper and washer switch	Ignition switch at ON	Windshield wiper switch at OFF position	B+
W	Wiper motor auto stop input signal	BCM	Wiper auto stop at ON		1.0 or less	• BCM • Related wiring harness
W	Wiper motor auto stop input signal	BCM	Wiper auto stop at OFF		B+	• BCM • Related wiring harness
X	Vehicle speed signal input	Instrument cluster	Because this terminal is for communication, good/no good judgment by terminal voltage is not possible.
