FUEL GAUGE SENDER UNIT INSPECTION

id092200801800

1.  Disconnect the negative battery cable.

2.  Remove the rear seat cushion (4SD). (See REAR SEAT CUSHION REMOVAL/INSTALLATION [4SD].)

3.  Lift the rear seat cushion (5HB). (See REAR SEAT REMOVAL/INSTALLATION [5HB/WAGON].)

4.  Remove the fuel pump unit. (See FUEL PUMP UNIT REMOVAL/INSTALLATION [L8, LF, L5].)

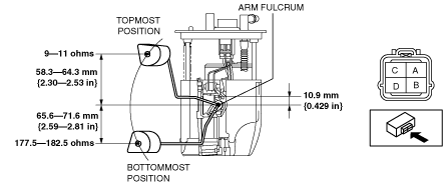

5.  Move the float to the topmost and bottommost positions, and verify that the resistance between terminals A and C of the fuel gauge sender unit and the position of the float are as shown in the figure.

am6zzw00000407

•  If they are not as shown in the figure, replace the fuel gauge sender unit.
