1. Disassemble in the order indicated in the table.
|
1
|
Cut-off seal
|
|
2
|
Cut-off seal spring
|
|
3
|
Outer oil seal
(See Oil Seal Disassembly Note.)
|
|
4
|
Outer O-ring (large radius)
|
|
5
|
Outer oil seal spring
|
|
6
|
Inner oil seal
(See Oil Seal Disassembly Note.)
|
|
7
|
Inner O-ring (small radius)
|
|
8
|
Inner oil seal spring
|

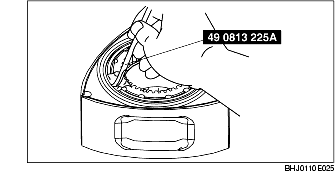

1. Remove the oil seal using the SST.
