CONVENTIONAL BRAKE SYSTEM LOCATION INDEX

id041100800100

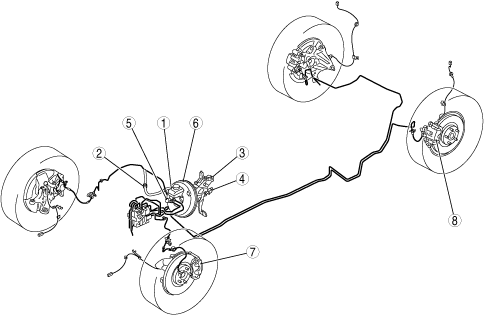

L.H.D.

ar8uuw00001213

1	Brake fluid (See AIR BLEEDING.)
2	Vacuum line (See VACUUM LINE INSPECTION.)
3	Brake pedal (See BRAKE PEDAL INSPECTION.) (See BRAKE PEDAL REMOVAL/INSTALLATION.)
4	Brake switch (See BRAKE SWITCH INSPECTION.)
5	Master cylinder (See MASTER CYLINDER REMOVAL/INSTALLATION.)
6	Power brake unit (See POWER BRAKE UNIT INSPECTION.) (See POWER BRAKE UNIT REMOVAL/INSTALLATION.)
7	Front brake (disc) (See FRONT BRAKE (DISC) INSPECTION.) (See FRONT BRAKE (DISC) REMOVAL/INSTALLATION.) (See DISC PAD (FRONT) REPLACEMENT.) (See CALIPER (FRONT) DISASSEMBLY/ASSEMBLY.) (See BRAKE HOSE (FRONT) REMOVAL/INSTALLATION.)
8	Rear brake (disc) (See REAR BRAKE (DISC) INSPECTION.) (See REAR BRAKE (DISC) REMOVAL/INSTALLATION.) (See DISC PAD (REAR) REPLACEMENT.) (See CALIPER (REAR) DISASSEMBLY/ASSEMBLY.) (See BRAKE HOSE (REAR) REMOVAL/INSTALLATION.)

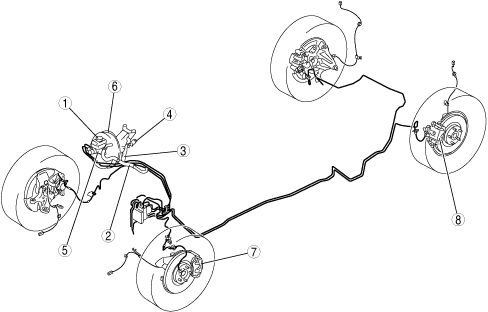

R.H.D.

ar8wzw00000293

1	Brake fluid (See AIR BLEEDING.)
2	Vacuum line (See VACUUM LINE INSPECTION.)
3	Brake pedal (See BRAKE PEDAL INSPECTION.) (See BRAKE PEDAL REMOVAL/INSTALLATION.)
4	Brake switch (See BRAKE SWITCH INSPECTION.)
5	Master cylinder (See MASTER CYLINDER REMOVAL/INSTALLATION.)
6	Power brake unit (See POWER BRAKE UNIT INSPECTION.) (See POWER BRAKE UNIT REMOVAL/INSTALLATION.)
7	Front brake (disc) (See FRONT BRAKE (DISC) INSPECTION.) (See FRONT BRAKE (DISC) REMOVAL/INSTALLATION.) (See DISC PAD (FRONT) REPLACEMENT.) (See CALIPER (FRONT) DISASSEMBLY/ASSEMBLY.) (See BRAKE HOSE (FRONT) REMOVAL/INSTALLATION.)
8	Rear brake (disc) (See REAR BRAKE (DISC) INSPECTION.) (See REAR BRAKE (DISC) REMOVAL/INSTALLATION.) (See DISC PAD (REAR) REPLACEMENT.) (See CALIPER (REAR) DISASSEMBLY/ASSEMBLY.) (See BRAKE HOSE (REAR) REMOVAL/INSTALLATION.)
