CLUTCH UNIT REMOVAL/INSTALLATION

id051000800300

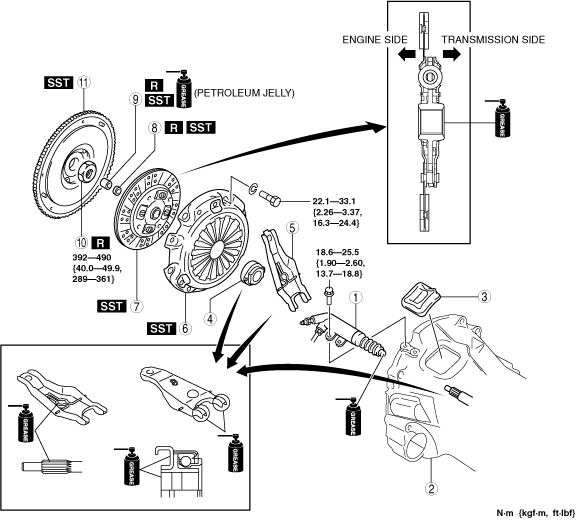

1.  Remove in the order indicated in the table.

2.  Install in the reverse order of removal.

ar8wzw00000547

1
Clutch release cylinder
(See CLUTCH RELEASE CYLINDER REMOVAL/INSTALLATION.)
2
Manual Transmission
(See TRANSMISSION REMOVAL/INSTALLATION [R15M-D].)
(See TRANSMISSION REMOVAL/INSTALLATION [P66M-D].)
3
Boot
4
Clutch release collar
5
Clutch release fork
6
Clutch cover
(See Clutch Cover, Clutch Disc Removal Note.)
(See Clutch Cover Installation Note.)
7
Clutch disc
(See Clutch Cover, Clutch Disc Removal Note.)
(See Clutch Disc Installation Note.)
8
Oil seal
(See Oil Seal, Pilot Bearing Removal Note.)
(See Pilot Bearing, Oil Seal Installation Note.)
9
Pilot bearing
(See Oil Seal, Pilot Bearing Removal Note.)
(See Pilot Bearing, Oil Seal Installation Note.)
10
Locknut
11
Flywheel
(See Flywheel Removal Note.)
(See Flywheel Installation Note.)


Clutch Cover, Clutch Disc Removal Note

1.  Install the SSTs.

ar8wzw00000548

2.  In criss-cross pattern, loosen the bolts one rotation at a time until there is no remaining spring pressure.

3.  Remove the clutch cover and the clutch disc.


Oil Seal, Pilot Bearing Removal Note

Note
•  Remove the pilot bearing only if there is a malfunction.

1.  Remove the pilot bearing and the oil seal together using the SST.

ar8wzw00000549


Flywheel Removal Note

1.  Install the SST to the flywheel.

2.  Remove the locknut using the SST.

ar8wzw00000550

Note
•  Inspect the eccentric shaft for oil leakage after removing the flywheel. If necessary, replace the oil seal. (See REAR OIL SEAL REPLACEMENT [13B-MSP].)

3.  Remove the flywheel using the SST.

ar8wzw00000551

4.  Remove the key from the eccentric shaft.


Flywheel Installation Note

1.  Install the key to the eccentric shaft.

2.  Align the flywheel key groove with the eccentric shaft key and install.

ar8uuw00000532

3.  Install the SST to the flywheel.

4.  Tighten the locknut using the SST.

ar8wzw00000552

Tightening torque
392—490 N·m
{40.0—49.9 kgf·m, 289—361 ft·lbf}
Caution
•  Remove the seal protruding from the threads without it becoming caught in the pilot bearing.


Pilot Bearing, Oil Seal Installation Note

1.  Install the pilot bearing using the SSTs.

ar8uuw00002556

Note
•  Bearing outer diameter: 20 mm {0.787 in}
•  Press-in depth:
11.5—12.25 mm {0.453—0.482 in}

2.  Install a new oil seal using the SSTs.


Clutch Disc Installation Note

1.  Clean the splines of the clutch disc and the main drive gear with a brush.

2.  Spread a thin layer of clutch grease on the splines.

3.  Secure the clutch disc to the flywheel using the SSTs.

ar8wzw00000554


Clutch Cover Installation Note

1.  Align the clutch cover with the flywheel knock pin and install.

2.  Tighten the bolts evenly and gradually in the order shown in the figure.

ar8wzw00000555

Tightening torque
22.1—33.1 N·m
{2.26—3.37 kgf·m, 16.3—24.4 ft·lbf}
