TRANSMISSION REMOVAL/INSTALLATION [P66M-D]

id051111246700

1.  Remove the engine cover. (See ENGINE COVER REMOVAL/INSTALLATION [13B-MSP].)

2.  Remove the battery cover.

3.  Disconnect the negative battery cable.

4.  Drain the transmission oil. (See TRANSMISSION OIL REPLACEMENT [P66M-D].)

5.  Remove in the order indicated in the table.

6.  Install in the reverse order of removal.

7.  Add transmission oil. (See TRANSMISSION OIL REPLACEMENT [P66M-D].)

8.  Perform the "INSPECTION AFTER TRANSMISSION INSTALLATION", and verify that there is no malfunction. (See INSPECTION AFTER TRANSMISSION INSTALLATION [P66M-D].)

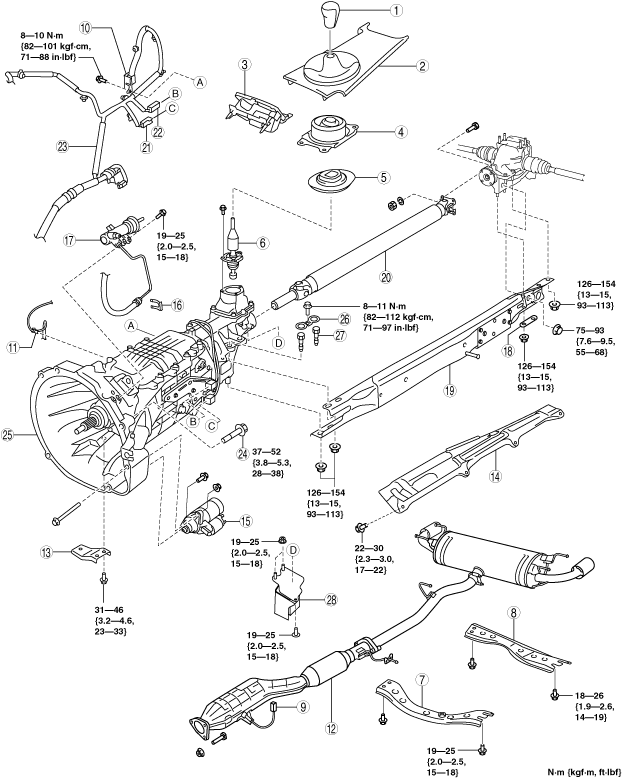

ar8wzw00000832

1
Shift lever knob
2
Upper panel
3
Ashtray panel
4
Shift insulator component (outer)
5
Shift insulator component (inner)
6
Shift lever component
(See Power Plant Frame Installation Note.)
7
Front tunnel member
8
Rear tunnel member
9
HO2S connector
10
HO2S connector bracket
11
Clip
12
Catalytic converter, middle pipe, main silencer
(See EXHAUST SYSTEM REMOVAL/INSTALLATION [13B-MSP].)
13
Exhaust manifold stay
14
Heat insulator
15
Starter
(See STARTER REMOVAL/INSTALLATION [13B-MSP].)
16
Clutch release cylinder clip
17
Clutch release cylinder
(See CLUTCH RELEASE CYLINDER REMOVAL/INSTALLATION.)
18
Plate
19
Power plant frame
(See Power Plant Frame Removal Note.)
(See Transmission Installation Note.)
20
Propeller shaft
(See Propeller Shaft Removal Note.)
(See PROPELLER SHAFT REMOVAL/INSTALLATION.)
21
Back-up light switch connector
22
Neutral switch connector
23
Wire
24
Transmission installation bolt
25
Transmission
(See Wiring Harness Removal Note.)
(See Transmission Removal Note.)
26
Stopper
27
Bolt
28
Dynamic damper


Power Plant Frame Removal Note

1.  Support the transmission using a transmission jack.

ar8uuw00001543

2.  Remove the power plant frame.


Propeller Shaft Removal Note

1.  Install the SST to the main shaft.

ar8uuw00001544

2.  Insert a slab of wood behind the rear differential, and remove the propeller shaft.

ar8uuw00001545


Wiring Harness Removal Note

1.  Remove the wiring harness clip from the transmission as shown in the figure.

ar8uuw00001546


Transmission Removal Note

Warning
•  Remove the transmission carefully, holding it steady. If the transmission falls it could be damaged or cause injury.
Caution
•  To prevent part interference in the engine compartment, position the installation part of the exhaust manifold stay of the front pipe on the transverse member to control the inclination of the transmission under its own weight.
ar8uuw00001547

1.  Support the transmission securely using a transmission jack.

ar8uuw00001548

2.  Remove the transmission installation bolt.

3.  Remove the transmission.


Transmission Installation Note

1.  Shift to any gear position.

2.  Install the SST to the main shaft.

ar8uuw00001544

Warning
•  Remove the transmission carefully, holding it steady. If the transmission falls it could be damaged or cause injury.

3.  Place the transmission on the transmission jack and raise it.

ar8uuw00001548

Note
•  Slowly rotate the SST to engage the clutch with the main drive gear spline, and install the transmission.

4.  Install the transmission.

5.  Tighten the transmission installation bolt.

ar8uuw00001549

Bolt length
A: 55 mm {2.1 in}
B: 90 mm {3.5 in}
Tightening torque
37—52 N·m {3.8—5.3 kgf·m, 28—38 ft·lbf}


Power Plant Frame Installation Note

1.  Support the transmission using a transmission jack.

ar8uuw00001543

2.  Install the power plant frame.

3.  Install the plate.

4.  Temporarily tighten the nuts in the order shown in the figure.

ar8uuw00001550

5.  Tighten nut 1 until the power plant frame is seated in the rear differential.

6.  Install the heat insulator, exhaust manifold stay, catalytic converter, middle pipe, main silencer and front tunnel member.

7.  Raise the power plant frame front end (transmission side) or transmission using a transmission jack so that dimension A (between power plant frame lower surface and front tunnel member lower surface) shown in the figure is within the adjustment value.

ar8uuw00001551

Note
•   When raising the power plant frame without a transmission jack, use bolts (M12x1.25) with a thread length of 55 mm {2.17 in} or more. Tighten the bolts from the underside of the front tunnel member as shown in the figure and raise the power plant frame.
•  When using bolts, the underside of the power plant frame could be damaged. Affix tape to the underside of the frame to prevent damage.
•  If there is the possibility of age-related bending/deterioration of the mount, adjust dimension A to approx. 15 mm {0.59 in} higher than the adjustment value to facilitate obtaining the specification.
Adjustment dimension A
55—57 mm {2.17—2.24 in}

8.  Tighten the nuts and bolts on the rear differential side in the order shown in the figure.

ar8uuw00001552

Bolt, nut number

Tightening torque

N·m {kgf·m, ft·lbf}
1, 2
126—154
{13—15, 93—113}
3
75—93
{7.6—9.5, 55—68}

9.  Tighten the nuts on the rear differential side in the order shown in the figure.

ar8uuw00001553

Tightening torque
126—154 N·m {13—15 kgf·m, 93—113 ft·lbf}

10.  Verify that dimension A is within the specification with the transmission jack and the adjustment bolt removed.

•  If it is not within the specification, adjust dimension A again.
Standard dimension A
48.4—56.4 mm {1.91—2.22 in}


Shift Lever Component Installation Note

Note
•   If the extension housing has been removed or the transmission has been disassembled and inspected, always add the specified type and amount of transmission oil.

1.  Add the specified type and amount of oil to the shift control case.

ar8uuw00001812

Shift control case specified oil grade
API Service GL-4
Shift control case specified oil viscosity
SAE 75W-90
Shift control case capacity (approx. quantity)
80—230 ml {80—230 cc, 4.9—14.0 in3}

2.  Apply grease to the areas of the shift lever component as shown in the figure.

ar8uuw00001554
