TRANSMISSION RANGE (TR) SWITCH ADJUSTMENT [SJ6A-EL]

id051311251600

Caution
•  Water or foreign material entering the connector can cause poor connections or corrosion. Be sure that water or foreign material do not enter the connector when disconnecting it.

1.  Remove the engine cover. (See ENGINE COVER REMOVAL/INSTALLATION [13B-MSP].)

2.  Remove the battery cover.

3.  Disconnect the negative battery cable.

4.  Remove the front tunnel member.

5.  Remove the rear tunnel member.

6.  Remove the catalytic converter. (See EXHAUST SYSTEM REMOVAL/INSTALLATION [13B-MSP].)

7.  Remove the insulator.

ar8uuw00000309

8.  Mark the manual shaft lever component as shown in the figure.

ar8uuw00000310

9.  Separate the manual shaft lever component from selector lever.

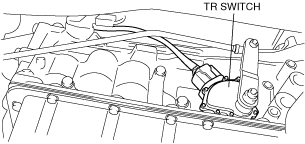

10.  Disconnect the TR switch connector.

ar8uuw00000311

11.  Rotate the manual shaft to the N position.

Caution
•  Do not use an impact wrench. Hold the manual shaft lever when removing the manual shaft nut, otherwise the transmission may be damaged.

12.  Set the adjustable wrench as shown in the figure to hold the manual shaft lever.

ar8uuw00000312

13.  Remove the manual shaft nut.

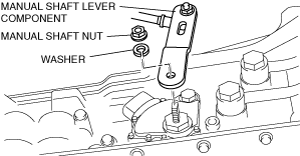

14.  Remove the washer and manual shaft lever component.

ar8uuw00000313

15.  Loosen the TR switch mounting bolts.

16.  Temporarily install the TR switch mounting bolt.

Caution
•  Improper adjustment of the TR switch will cause abnormal operation of the automatic transmission. Be sure to adjust the TR switch correctly.

17.  Verify the TR switch reference line and the notch of the manual shaft are aligned.

e5u513zw5081

18.  Tighten the TR switch mounting bolts.

Tightening torque
9.8—15.7 N·m {100—160 kgf·cm, 87—138 in·lbf}

19.  Inspect for continuity between TR switch terminals E and H.

ar8uuw00000314

20.  Install the manual shaft lever component and washer.

Caution
•  Do not use an impact wrench. Hold the manual shaft lever when tightening the manual shaft nut, otherwise the transmission may be damaged.

21.  Set the adjustable wrench as shown in the figure to hold the manual shaft lever.

ar8uuw00000315

22.  Tighten the manual shaft nut using a torque wrench.

Tightening torque
13.7—17.6 N·m {1.4—1.8 kgf·m, 11—13 ft·lbf}

23.  Shift the selector lever to P position.

24.  Turn the manual shaft lever to P position.

25.  Inspect TR switch continuity. (See TRANSMISSION RANGE (TR) SWITCH INSPECTION [SJ6A-EL].)

26.  Connect the TR switch connector.

27.  Align the mark of the manual shaft lever component as shown in the figure.

ar8uuw00000310

28.  Install the manual shaft lever component installation nut.

Tightening torque
10.8—14.7 N·m {1.1—1.4 kgf·m, 8.0—10.8 ft·lbf}

29.  Install the insulator.

Tightening torque
8—11 N·m {82—112 kgf·cm, 72—97 in·lbf}

30.  Install the catalytic converter. (See EXHAUST SYSTEM REMOVAL/INSTALLATION [13B-MSP].)

31.  Install the rear tunnel member.

32.  Install the front tunnel member.

33.  Connect the negative battery cable.

34.  Install the battery cover.

35.  Install the engine cover. (See ENGINE COVER REMOVAL/INSTALLATION [13B-MSP].)

36.  Inspect TR switch operation. (See TRANSMISSION RANGE (TR) SWITCH INSPECTION [SJ6A-EL].)
