DTC B2867

id080200803100

DTC B2867

Poor connection of any SAS control module connectors

DETECTION CONDITION

Warning

•  Detection conditions are for understanding the DTC outline before performing an inspection. Performing an inspection according to only the detection conditions may cause injury due to an operating error, or damage the system. When performing an inspection, always follow the inspection procedure.

•  There is no continuity between the poor connection detector bar terminals of the SAS control module.

POSSIBLE CAUSE

•  Malfunction of any SAS control module connectors

•  Poor connection of any SAS control module connectors

•  SAS control module malfunction

DTC B2867	Poor connection of any SAS control module connectors
DETECTION CONDITION	Warning • Detection conditions are for understanding the DTC outline before performing an inspection. Performing an inspection according to only the detection conditions may cause injury due to an operating error, or damage the system. When performing an inspection, always follow the inspection procedure. • There is no continuity between the poor connection detector bar terminals of the SAS control module.
POSSIBLE CAUSE	• Malfunction of any SAS control module connectors • Poor connection of any SAS control module connectors • SAS control module malfunction

Diagnostic procedure

STEP	INSPECTION		ACTION
1	VERIFY THAT ALL SAS CONTROL MODULE CONNECTORS ARE CONNECTED WITH SAS CONTROL MODULE Warning • Handling the air bag system components improperly can accidentally deploy the air bag modules and pre-tensioner seat belts, which may seriously injure you. Read the service warnings and cautions before handling the air bag system components. (See AIR BAG SYSTEM SERVICE WARNINGS.) (See AIR BAG SYSTEM SERVICE CAUTIONS.) • Turn the ignition switch to the LOCK position. • Disconnect the negative battery cable and wait for 1 min or more. • Partially peel back the floor covering. • Are all SAS control module connectors securely connected?	Yes	Go to the next step.
1		No	Reconnect the connector properly.

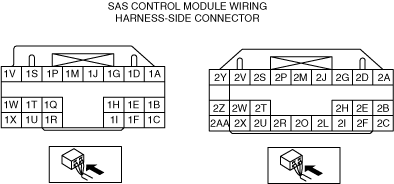

2	INSPECT ALL SAS CONTROL MODULE CONNECTORS • Remove the column cover. • Disconnect the clock spring connector. • Remove the glove compartment. • Disconnect the passenger-side air bag module connector. • Disconnect the driver and passenger-side side air bag module connectors. • Disconnect the driver and passenger-side curtain air bag module connectors. • Remove the rear door lower trim. • Disconnect the driver and passenger-side pre-tensioner seat belt connectors. • Disconnect the SAS control module connector. • Are the poor connection detector bars of SAS control module connectors normal?	Yes	Replace the SAS control module. (See SAS CONTROL MODULE REMOVAL/INSTALLATION.)
2		No	Replace the air bag wiring harness.
