SAS CONTROL MODULE REMOVAL/INSTALLATION

id081000801400

Warning

•  Handling the SAS control module improperly can accidentally deploy the air bag modules and pre-tensioner seat belt, which may seriously injure you. Read the service warnings and cautions before handling the air bag module. (See AIR BAG SYSTEM SERVICE WARNINGS.) (See AIR BAG SYSTEM SERVICE CAUTIONS.)

Caution

•  Handling the SAS control module improperly can accidentally deploy the air bag modules and pre-tensioner seat belt, which may seriously injure you. If configuration is not completed before removing the SAS control module, DTC B1342 will be displayed.

1.  Perform SAS control module configuration when replacing it. (See SAS CONTROL MODULE CONFIGURATION.)

2.  Turn the ignition switch to the LOCK position.

3.  Disconnect the negative battery cable and wait for 1 min or more.

4.  Remove the following parts:

(1)  Console (See CONSOLE REMOVAL/INSTALLATION.)

(2)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(3)  Inner scuff plate (See INNER SCUFF PLATE REMOVAL/INSTALLATION.)

(4)  Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(5)  Side panels (See SIDE PANEL REMOVAL/INSTALLATION.)

(6)  Bonnet release lever (See BONNET LATCH AND RELEASE LEVER REMOVAL/INSTALLATION.)

(7)  Lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

(8)  Column cover (See COLUMN COVER REMOVAL/INSTALLATION.)

(9)  Center panel unit (See CENTER PANEL UNIT REMOVAL/INSTALLATION.)

(10)  Steering shaft installation nuts (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.)

(11)  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

(12)  TCM (AT) (See TCM REMOVAL/INSTALLATION [SJ6A-EL].)

(13)  A/C amplifier (See A/C AMPLIFIER REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) (See A/C AMPLIFIER REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].)

(14)  Auto light unit (See AUTO LIGHT/WIPER CONTROL MODULE REMOVAL/INSTALLATION.)

(15)  Dashboard (See DASHBOARD REMOVAL/INSTALLATION.)

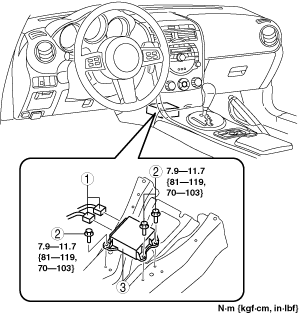

5.  Remove in the order indicated in the table.

ar8wzw00000634

1	Connector
2	Bolt
3	SAS control module

6.  Install in the reverse order of removal.

7.  Turn the ignition switch to the ON position.

•  If the SAS control module is replaced, turn the ignition switch to the ON position for 20 s or more after completing the configuration.

8.  Verify that the air bag system warning light illuminates for approx. 6 s and goes out.

•  If the air bag system warning light does not operate normally, refer to the on-board diagnostic system (air bag system) and perform inspection of the system.
