SEAT WARMER UNIT INSPECTION

id091300801400

Seat Cushion

1.  Remove the front seat. (See FRONT SEAT REMOVAL/INSTALLATION.)

2.  Remove the seat cushion trim. (See FRONT SEAT CUSHION TRIM REMOVAL/INSTALLATION.)

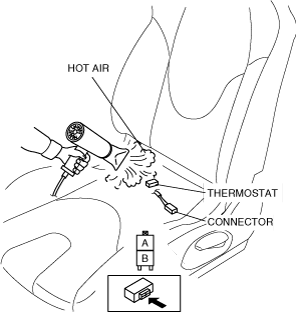

3.  While inspecting for continuity between the connector terminals A and B, use a dryer to warm the thermostat of the seat warmer unit on seat cushion.

ar8uuw00002005

4.  Measure the temperature of the thermostat by using a thermometer.

acxaaw00001315

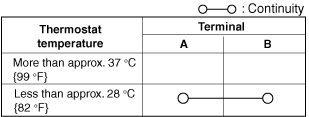

•  Replace the seat heater unit if conduction cannot be confirmed as indicated by the diagram. (See FRONT SEAT CUSHION TRIM REMOVAL/INSTALLATION.)

acxaaw00000051

Seat Back

1.  Remove the front seat. (See FRONT SEAT REMOVAL/INSTALLATION.)

2.  Remove the seat back trim. (See FRONT SEAT BACK TRIM REMOVAL/INSTALLATION.)

3.  Verify that the continuity between terminals A and B is as indicated in the table.

acxaaw00001316

•  If not as indicated in the table, replace the seat back pad.

acxaaw00000053
