FRONT SEAT BACK COMPONENT [VEHICLES WITHOUT POWER SEAT SYSTEM] REMOVAL/INSTALLATION

id091300912900

Warning

•  Handling a front seat (with built-in side air bag) improperly can accidentally operate (deploy) the air bag, which may seriously injure you. Read the service warnings before handling a front seat (with built-in side air bag). (See AIR BAG SYSTEM SERVICE WARNINGS.)

Caution

•  After removing a front seat, do not operate the slider lever. If the slider lever is operated, the left and right slide positions will deviate, and the slide adjuster may be damaged after the front seat is installed.

•  Verify that there are no malfunctions in the sliding mechanism after installing a front seat.

•  When performing the procedure with a front seat removed from the vehicle, perform the procedure on a clean rag so as not to damage or soil the seat.

L.H.D.

Removal

1.  Turn the ignition switch to LOCK position.

2.  Disconnect the negative battery cable and wait 1 min or more.

3.  Remove the front seat. (See FRONT SEAT REMOVAL/INSTALLATION.)

4.  Remove the front seat side cover. (See FRONT SEAT SIDE COVER REMOVAL/INSTALLATION.)

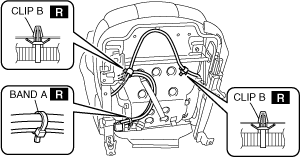

5.  Cut the band A securing the harness.

ar8uuw00001994

6.  Remove the clip B.

7.  Slide hook C in the order of (1), (2), (3) shown in the figure to detach it from hook D.

ar8uuw00001995

8.  Cut the band E securing the side air bag wiring harness.

ar8uuw00001996

9.  Cut the band F securing the side air bag wiring harness.

ar8uuw00001997

10.  Remove the bolts G, then remove the front seat back component.

ar8wzw00001018

Installation

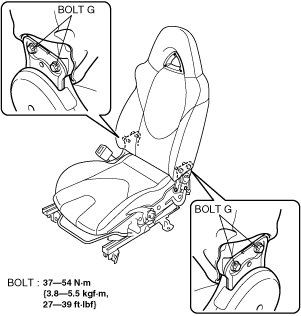

1.  Install the bolts G, then install the front seat back component.

ar8wzw00001019

2.  Install the band F, while tighten the side air bag wiring harness.

ar8uuw00002000

Note

•  Install the band with the end pointed to the Bottom.

3.  Install the band E, while tighten the side air bag wiring harness.

ar8uuw00002001

Note

•  Install the band with the end pointed to the Bottom.

4.  Cut off the end of the band at the position shown in the figure.

ar8uuw00002002

5.  Slide hook C in the order of (4), (5), (6) shown in the figure to install it to hook D.

ar8uuw00002003

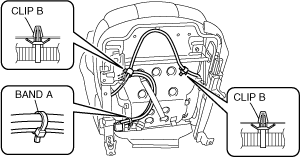

6.  Install the clip B.

ar8uuw00002254

7.  Install the band A, while tighten the harness.

R.H.D.

Removal

1.  Turn the ignition switch to LOCK position.

2.  Disconnect the negative battery cable and wait 1 min or more.

3.  Remove the front seat. (See FRONT SEAT REMOVAL/INSTALLATION.)

4.  Remove the front seat side cover. (See FRONT SEAT SIDE COVER REMOVAL/INSTALLATION.)

5.  Cut the band A securing the harness.

ar8wzw00001020

6.  Remove the clip B.

7.  Slide hook C in the order of (1), (2), (3) shown in the figure to detach it from hook D.

ar8wzw00001021

8.  Cut the band E securing the side air bag wiring harness.

ar8wzw00001022

9.  Cut the band F securing the side air bag wiring harness.

ar8wzw00001023

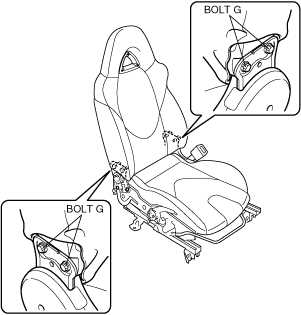

10.  Remove the bolts G, then remove the front seat back component.

ar8wzw00001024

Installation

1.  Install the bolts G, then install the front seat back component.

ar8wzw00001025

2.  Install the band F, while tighten the side air bag wiring harness.

ar8wzw00001026

Note

•  Install the band with the end pointed to the Bottom.

3.  Install the band E, while tighten the side air bag wiring harness.

ar8wzw00001027

Note

•  Install the band with the end pointed to the Bottom.

4.  Cut off the end of the band at the position shown in the figure.

ar8wzw00001028

5.  Slide hook C in the order of (4), (5), (6) shown in the figure to install it to hook D.

ar8wzw00001029

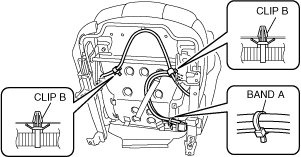

6.  Install the clip B.

ar8wzw00001030

7.  Install the band A, while tighten the harness.
