DOOR SASH FILM INSTALLATION


id091600805500

1.  Remove any grease or dirt from the affixing surface of the door.

2.  Cut away the unused portion along the dotted lines.

ar8uuw00002259

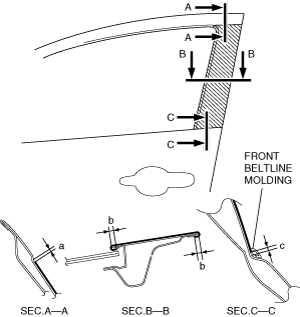

3.  Peel off the backing paper and attach the door sash film onto the door as shown in the figure.

ar8uuw00002260

Standard clearance
a: 0—1.0 mm {0—0.03 in}
b: 3.0—5.0 mm {0.12—0.19 in}
c: 3.0 mm {0.19 in} or less

4.  Peel off the transparent protective film on the door sash film.

5.  Install the front beltline molding. (See FRONT BELTLINE MOLDING REMOVAL/INSTALLATION.)
