AERODYNAMIC UNDER COVER REMOVAL/INSTALLATION

id091600960600

1.  Remove the front mudguard. (See FRONT MUDGUARD REMOVAL/INSTALLATION.)

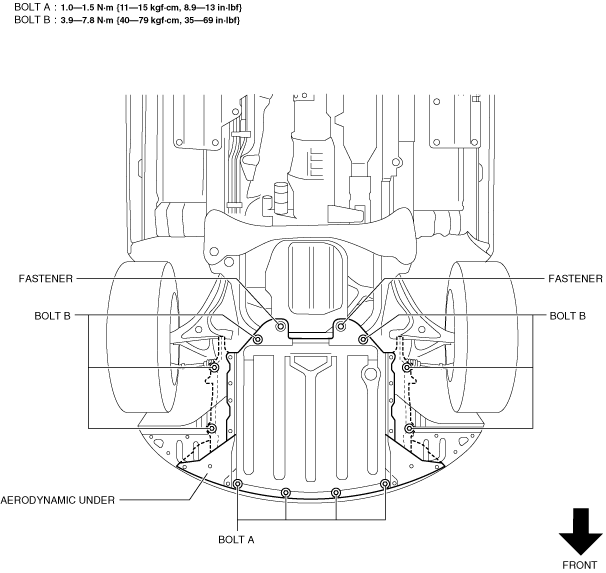

2.  Remove the bolts A, B and fasteners.

ar8uuw00001960

3.  Uninstall the aerodynamic under cover with keeping it from coming in contact with the front mudguard.

Caution

•  Be careful not to damage the aerodynamic under cover during removal.

4.  Install in the reverse order of removal.
