FLOOR COVERING REMOVAL/INSTALLATION

id091700803000

1.  Disconnect the negative battery cable.

2.  Remove the following parts:

(1)  Front seat (See FRONT SEAT REMOVAL/INSTALLATION.)

(2)  Rear seat cushion (See REAR SEAT REMOVAL/INSTALLATION.)

(3)  Rear seat back (See REAR SEAT REMOVAL/INSTALLATION.)

(4)  Inner scuff plate (See INNER SCUFF PLATE REMOVAL/INSTALLATION.)

(5)  Ashtray illumination bulb (See ASHTRAY ILLUMINATION BULB REMOVAL/INSTALLATION.)

(6)  Console (See CONSOLE REMOVAL/INSTALLATION.)

(7)  Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(8)  Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

(9)  Seat belt rail (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

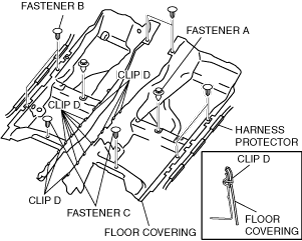

3.  Remove fasteners A, B, and C.

4.  Detach clip D and remove the floor covering.

ar8uuw00001928

5.  Take the floor covering out from the opened door.

6.  Install in the reverse order of removal.
