AUTO LIGHT/WIPER CONTROL MODULE REMOVAL/INSTALLATION


id091800809400


L.H.D.

1.  Disconnect the negative battery cable.

2.  Remove in the order indicated in the table.

ar8uuw00002561

1
Screw
2
Connector
3
Auto light/wiper control module

3.  Install in the reverse order of removal.


R.H.D.

1.  Disconnect the negative battery cable.

2.  Remove the following parts:

(1)  Center panel unit. (See CENTER PANEL UNIT REMOVAL/INSTALLATION.)
(2)  Lower panel. (See LOWER PANEL REMOVAL/INSTALLATION.)

3.  Remove in the order indicated in the table.

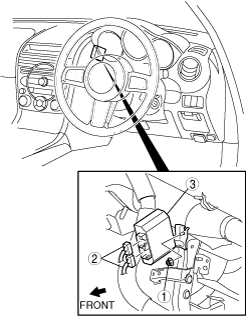

ar8uuw00001869

1
Nut
2
Connector
3
Auto light/wiper control module

4.  Install in the reverse order of removal.
