AUDIO CONTROL SWITCH INSPECTION

id092000800300

With Audio Unit

1.  Disconnect the negative battery cable and wait for 1 min or more.

2.  Remove the driver-side air bag module. (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)

3.  Remove the steering wheel. (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.)

4.  Verify the resistance and continuity between the audio control switch terminals.

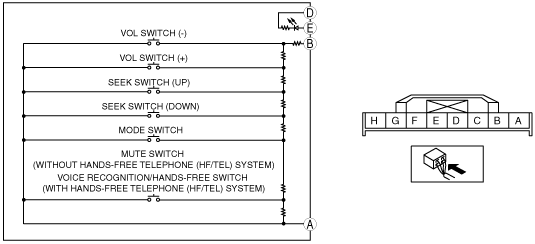

ar8uuw00002589

•  If the resistance and continuity are not as indicated in the tables, replace the audio control switch.

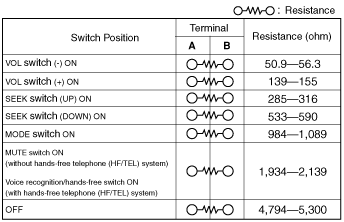

ar8wzw00001254

5.  Apply battery positive voltage to audio control switch terminal E, and connect terminal D to ground.

ar8wzw00001255

6.  Verify that the LED illuminates.

•  If the LED does not illuminate, replace the audio control switch.

With Car-navigation Unit

1.  Disconnect the negative battery cable and wait for 1 min or more.

2.  Remove the driver-side air bag module. (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)

3.  Remove the steering wheel. (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.)

4.  Verify the resistance and continuity between the audio control switch terminals.

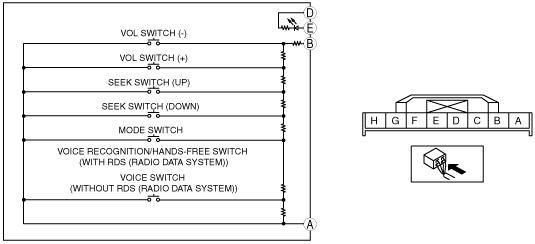

ar8wzw00001256

•  If the resistance and continuity are not as indicated in the tables, replace the audio control switch.

ar8wzw00001257

5.  Apply battery positive voltage to audio control switch terminal E, and connect terminal D to ground.

ar8wzw00001255

6.  Verify that the LED illuminates.

•  If the LED does not illuminate, replace the audio control switch.
