HANDS-FREE TELEPHONE (HF/TEL) UNIT REMOVAL/INSTALLATION

id092000807100

1.  Disconnect the negative battery cable.

2.  Remove the rear console. (See CONSOLE REMOVAL/INSTALLATION.)

3.  Remove in the order indicated in the table.

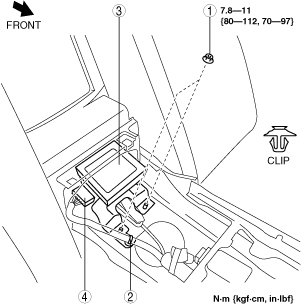

ar8uuw00001030

1	Nut
2	Clip
3	HF/TEL unit
4	Connector

4.  Install in the reverse order of removal.
