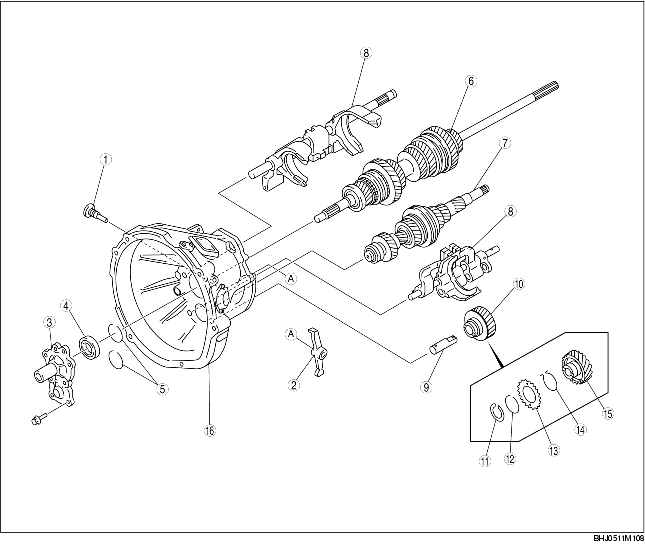

1. Disassemble in the order indicated in the table.
|
1
|
Crank lever shaft
|
|
2
|
5th/reverse counter lever
|
|
3
|
Front cover
(See Front Cover Disassembly Note.)
|
|
4
|
Oil seal
|
|
5
|
Snap ring (front)
|
|
6
|
Main drive gear, mainshaft component
|
|
7
|
Countershaft component
|
|
8
|
Shift fork and shift rod component
|
|
9
|
Reverse idler shaft
|
|
10
|
Reverse idler gear component
|
|
11
|
Snap ring
|
|
12
|
Spacer
|
|
13
|
Friction gear
|
|
14
|
Torsion spring
|
|
15
|
Reverse idler gear
|
|
16
|
Clutch housing
|

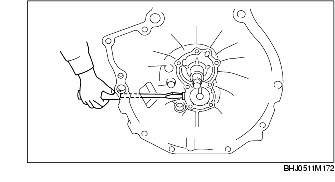

1. Remove the front cover by prying with a flathead screwdriver as shown in the figure.
