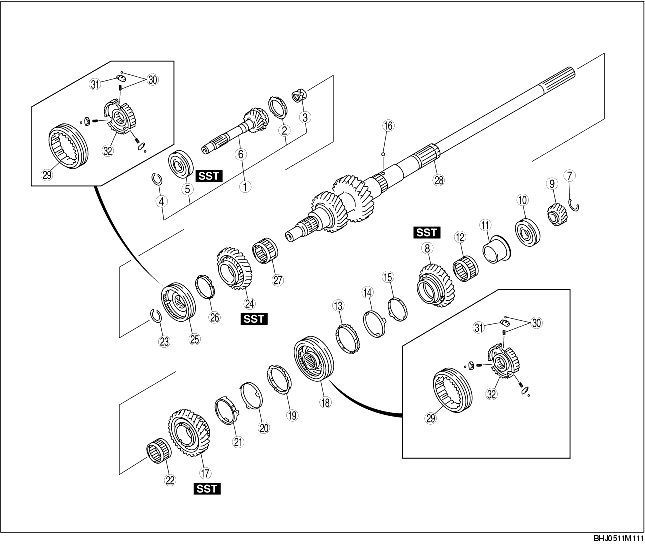

1. Disassemble in the order indicated in the table.
|
1
|
Main drive gear component
|
|
2
|
Synchronizer ring
|
|
3
|
Needle bearing
|
|
4
|
Snap ring (bearing)
(See Snap Ring Disassembly Note.)
|
|
5
|
Bearing
(See Bearing Disassembly Note.)
|
|
6
|
Main drive gear
|
|
7
|
Snap ring (6th gear)
(See Snap Ring Disassembly Note.)
|
|
8
|
1st gear
(See 1st Gear Disassembly Note.)
|
|
9
|
6th gear
|
|
10
|
Bearing
|
|
11
|
Inner race
|
|
12
|
Needle bearing
|
|
13
|
Synchronizer ring
|
|
14
|
Middle ring
|
|
15
|
Inner ring
|
|
16
|
Steel ball
|
|
17
|
2nd gear
(See 2nd Gear Disassembly Note.)
|
|
18
|
Clutch hub component (1st/2nd)
|
|
19
|
Synchronizer ring
|
|
20
|
Middle ring
|
|
21
|
Inner ring
|
|
22
|
Needle bearing
|
|
23
|
Snap ring (reverse gear)
|
|
24
|
Reverse gear
|
|
25
|
Clutch hub component (5th/reverse)
|
|
26
|
Synchronizer ring
|
|
27
|
Needle bearing
|
|
28
|
Mainshaft
|
|
29
|
Clutch hub sleeve
|
|
30
|
Steel ball, synchronizer key spring
|
|
31
|
Synchronizer key
|
|
32
|
Clutch hub
|

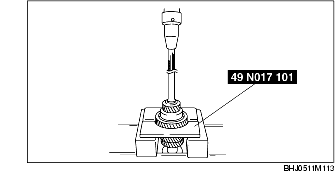

1. Remove the bearing using the SST.

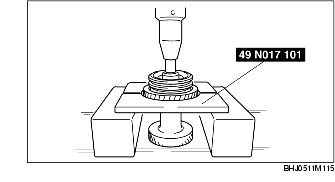

1. Shift the clutch hub component (1st/2nd) to the 2nd gear.
2. Remove the 6th gear, bearing and 1st gear together using the SST and a press.

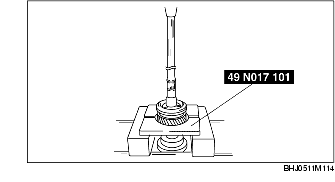

1. Remove the clutch hub component (1st/2nd) and 2nd gear together using the SST and a press.
1. Remove the clutch hub component (5th/reverse) and reverse gear together using the SST and a press.
