COUNTERSHAFT COMPONENT DISASSEMBLY
BHE051117050102

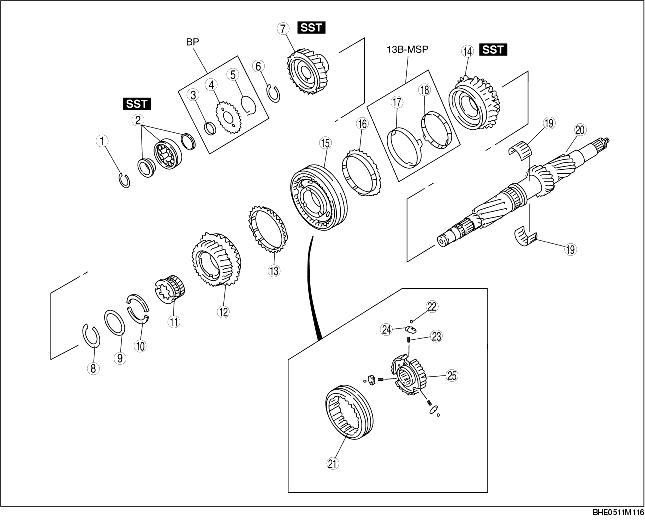

1. Disassemble in the order indicated in the table.
|
1
|
Snap ring (roller bearing)
|
|
2
|
Roller bearing
|
|
3
|
Spacer
|
|
4
|
Friction gear
|
|
5
|
Torsion spring
|
|
6
|
Snap ring (friction gear)
|
|
7
|
Counter drive gear
|
|
8
|
Snap ring
|
|
9
|
Retaining ring
|
|
10
|
Thrust washer
|
|
11
|
Inner race
|
|
12
|
Counter 4th gear
|
|
13
|
Synchronizer ring
|
|
14
|
Counter 3rd gear
|
|
15
|
Clutch hub component (3rd/4th)
|
|
16
|
Synchronizer ring
|
|
17
|
Middle ring
|
|
18
|
Inner ring
|
|
19
|
Needle bearing
|
|
20
|
Countershaft gear
|
|
21
|
Clutch hub sleeve
|
|
22
|
Steel ball
|
|
23
|
Synchronizer key spring
|
|
24
|
Synchronizer key
|
|
25
|
Clutch hub
|
Roller Bearing Disassembly Note

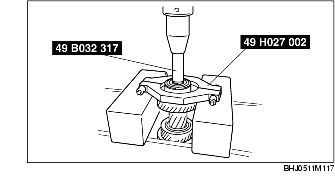

1. Remove the roller bearing using the SSTs and a press.
Counter Drive Gear Disassembly Note

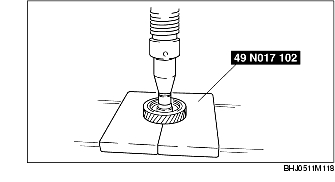

1. Remove the counter drive gear using the SST and a press.
Counter 3rd Gear Disassembly Note
1. Remove the counter 3rd gear and clutch hub component (3rd/4th) together using the SST and a press.
