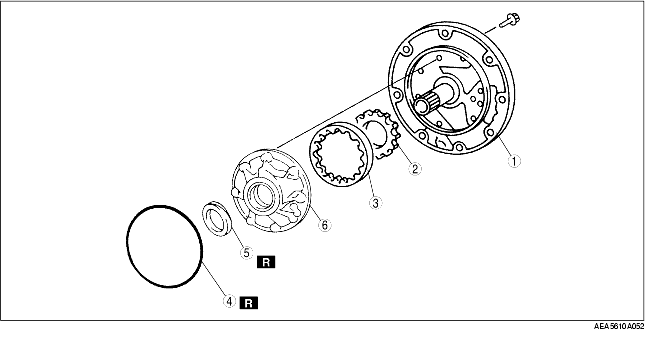

1. Disassemble in the order indicated in the table.
|
1
|
Oil pump cover
|
|
2
|
Inner rotor
(See Inner Rotor Disassembly Note.)
|
|
3
|
Outer rotor
|
|
4
|
O-ring
|
|
5
|
Oil seal
|
|
6
|
Oil pump housing
|

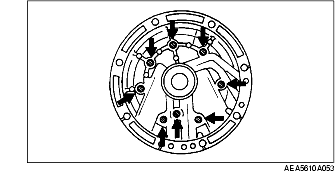

1. Loosen the mounting bolts evenly.

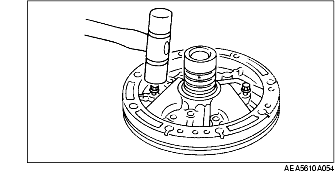

2. Lightly tap the head of the mounting bolts with a plastic hammer to remove the oil pump cover.

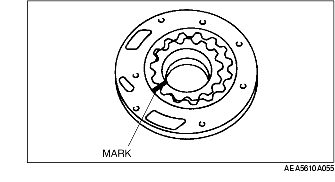

1. Mark the inner and outer rotors without scratching or denting them.
2. Remove the inner rotor.
