LOW AND REVERSE BRAKE DISASSEMBLY

BHE051319500A12

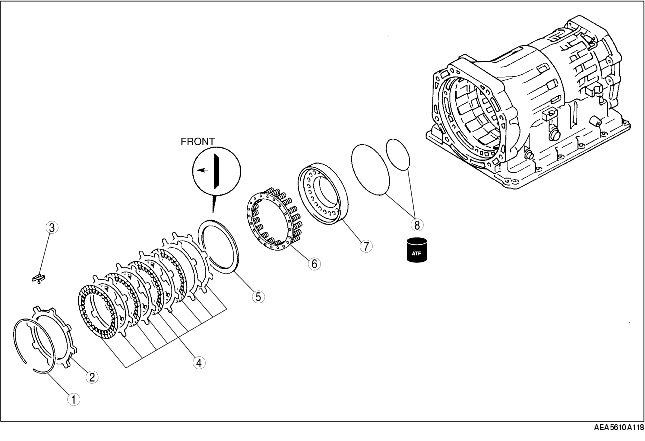

1. Disassemble in the order indicated in the table.


1	Snap ring
2	Retaining plate
3	N-spring
4	Drive and driven plate
5	Dished plate
6	Return spring
7	Low and reverse brake piston (See Low and Reverse Brake Piston Disassembly Note.)
8	Seal ring

Low and Reverse Brake Piston Disassembly Note

Warning

• Using compressed air can cause dirt and other particle to fly out, causing injury to the eyes. Wear protective eye wear whenever using compressed air.

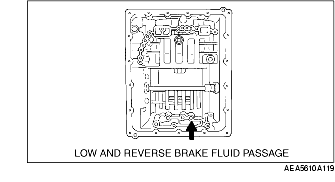

1. Apply compressed air to the part indicated in the figure and remove the low and reverse brake piston.

Air pressure

390 kPa {4.0 kgf/cm², 57 psi} max.
