INTAKE MANIFOLD DISASSEMBLY/ASSEMBLY

id011300805700

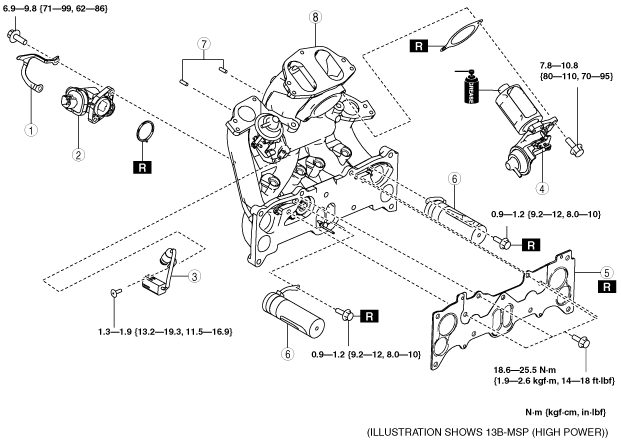

1.  Remove in the order indicated in the table.

2.  Install in the reverse order of removal.

ar8wzw00001426

1
Bracket (13B-MSP (HIGH POWER))
2
APV motor (13B-MSP (HIGH POWER))
(See APV Motor Installation Note.)
3
SSV switch
4
VDI valve
(See VDI Valve Installation Note.)
5
Gasket
6
APV
(See APV Removal Note.)
(See APV Installation Note.)
7
Blind cap
8
Intake manifold


APV Removal Note

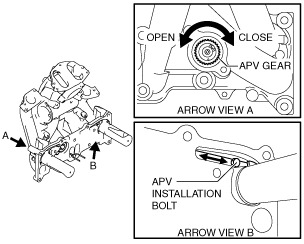

1.  Rotate the APV gear by hand to a position which allows removal of the APV installation bolt.

ar8wzw00001456

2.  Remove the APV installation bolt and the APV.


APV Installation Note

Caution
•  To prevent damage to the APV installation bolt, be careful not to perform the following:
―  Do not tighten the APV installation bolt to a torque which exceeds the specification.
―  Do not apply part cleaner to the threads of the APV installation bolt.

1.  Install the APV using a new APV installation bolt.

Tightening torque
0.9—1.2 N·m {9.2—12 kgf·cm, 8.0—10 in·lbf}

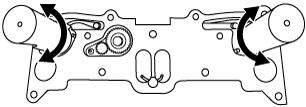

2.  Rotate the APV gear manually with the APV pointed perpendicular to the ground and verify that the APV can be rotated smoothly.

azzjjw00000132


VDI Valve Installation Note

1.  Apply grease to the VDI valve end as shown in the figure.

ar8wzw00001425


APV Motor Installation Note

1.  Install the intake manifold. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION.)

2.  Rotate the APV gear manually and verify that it can be rotated smoothly (approx. three-quarter rotation).

•  If the gear cannot be rotated smoothly, clean the internal ports of the housing and the areas around the APV.

3.  Install a new gasket, APV motor and bracket.

Tightening torque
6.9—9.8 N·m {71—99 kgf·cm, 62—86 in·lbf}
