PCM REMOVAL/INSTALLATION

id014000802400

1.  When replacing the PCM, perform the following:

•  PCM configuration (See PCM CONFIGURATION.)

2.  Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION.)

3.  Remove in the order indicated in the table.

4.  When replacing the PCM on the vehicles with the immobilizer system, perform the following:

•  Immobilizer system component replacement/key addition and clearing (See IMMOBILIZER SYSTEM COMPONENT REPLACEMENT/KEY ADDITION AND CLEARING.)(See IMMOBILIZER SYSTEM COMPONENT REPLACEMENT/KEY ADDITION AND CLEARING [ADVANCED KEYLESS SYSTEM].)

5.  Install in the reverse order of removal.

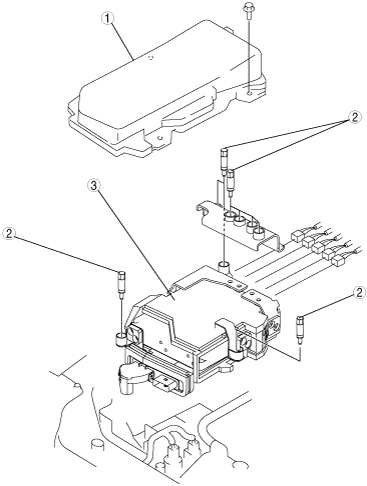

U.K. specs.

ar8wzw00001494

1	PCM cover
2	Set bolt (See Set Bolt Removal Note.) (See Set Bolt Installation Note.)
3	PCM component

Set Bolt Removal Note

1.  Drill the set bolt using a drill bit with a diameter larger than the shank until the head is removed.

•  If the shank is remained, remove it using locking pliers.

2.  Clean all foreign material from the PCM connectors.

Set Bolt Installation Note

1.  Install a new set bolt and tighten it until the neck of the bolt breaks off.

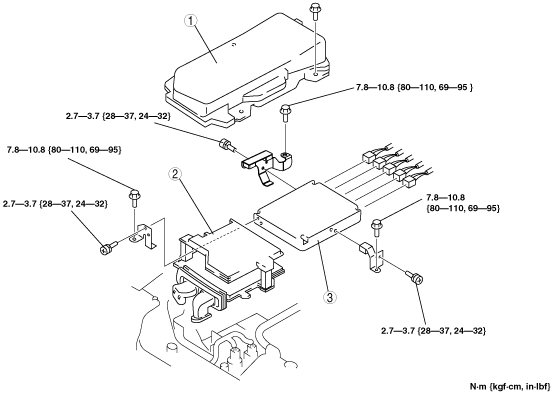

Except for U.K. specs.

ar8wzw00001495

1	PCM cover
2	PCM cooler
3	PCM
