1. Remove the HO2S connector.

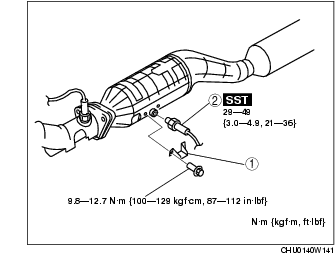

2. Remove in the order indicated in the table.
|
1
|
Protector
|
|
2
|
HO2S
(See HO2S Removal Note.)
|
3. Install in the reverse order of removal.

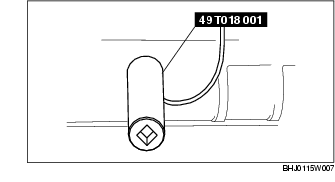

1. Remove the HO2S using the SST (49 T018 001).
