SECONDARY SHUTTER VALVE (SSV) SWITCH INSPECTION
id014000808400
-
Note
-
• Before performing the following inspection, make sure to follow the troubleshooting flowchart. (See Troubleshooting Procedure.)
Continuity Inspection
1. Verify that the continuity between SSV switch terminals A and B is as indicated in the table.
-
• If there is no malfunction, perform the "Circuit Open/Short Inspection".
-
• If there is any malfunction, replace the SSV switch. (See SECONDARY SHUTTER VALVE (SSV) SWITCH REMOVAL/INSTALLATION.)
|
Measurement condition
|
Continuity
|
|
Push the rod.
|
No continuity
|
|
Except above
|
Continuity detected
|
Circuit Open/Short Inspection

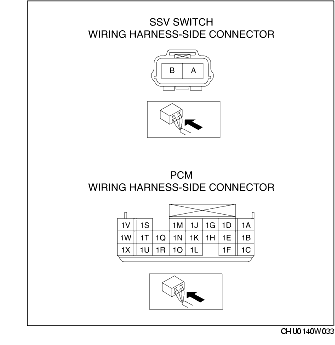

1. Disconnect the PCM connector.
2. Disconnect the metering oil pump switch connector.
3. Inspect the following wiring harnesses for open or short circuit. (Continuity inspection)
Open circuit
-
• If there is no continuity in the following wiring harnesses, there is an open circuit. Repair or replace the wiring harness.
-
– SSV switch terminal A and PCM terminal 1D
-
– SSV switch terminal B and body ground
Short circuit
-
• If there is continuity in the following wiring harnesses, there is a short circuit. Repair or replace the wiring harness.
-
– SSV switch terminal A and body ground
-
– SSV switch terminal A and power supply
