DSC OFF SWITCH REMOVAL/INSTALLATION


id041500801900

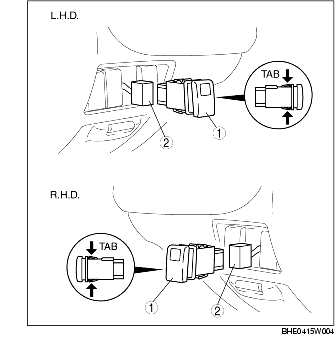

1. Remove in the order indicated in the table.

1
DSC OFF switch
2
Connector

2. Install in the reverse order of removal.

DSC OFF Switch Removal Note

1. Access the DSC OFF switch from behind of the dashboard, and squeeze the tabs of the switch.

2. Pull the DSC OFF switch towards the driver's side to remove it.
