STEP
|
INSPECTION
|
ACTION
|
|
|---|---|---|---|
|
1
|
• Inspect the solar radiation sensor. (See SOLAR RADIATION SENSOR INSPECTION.)
• Is it normal?
|
Yes
|
Go to the next step.
|
|
No
|
Replace the solar radiation sensor. (See SOLAR RADIATION SENSOR REMOVAL/INSTALLATION.)
|
||
|
2
|
• Disconnect the A/C amplifier connector (16-pin) and the solar radiation sensor connector.

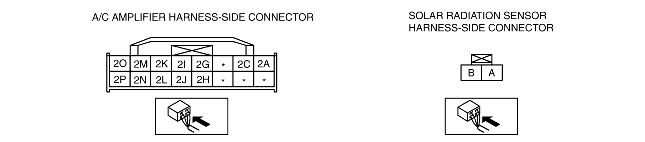

• Is there continuity between the following terminals of the A/C amplifier connector (16-pin) and the solar radiation sensor connector?
|
Yes
|
Go to the next step.
|
|
No
|
Repair the wiring harness.
|
||
|
3
|
• Is there a short circuit to ground in the wiring harness between A/C amplifier connector (16-pin) terminal 2I and solar radiation sensor connector terminal B?
|
Yes
|
Repair the wiring harness.
|
|
No
|
Inspect the connection at the A/C amplifier connector (16-pin). (See A/C AMPLIFIER INSPECTION [FULL-AUTO AIR CONDITIONER].)
|
||
|
|
|||
