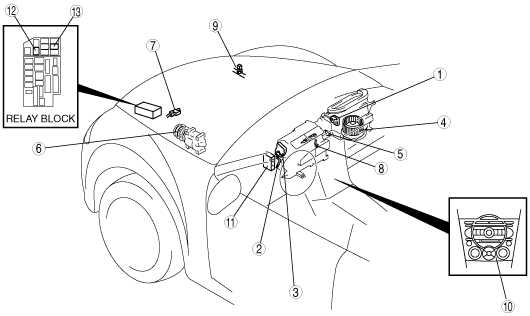

HVAC CONTROL SYSTEM LOCATION INDEX [MANUAL AIR CONDITIONER]

id0740008036a2

ar8wzw00001383

1	Air intake actuator (See AIR INTAKE ACTUATOR REMOVAL/INSTALLATION.) (See AIR INTAKE ACTUATOR INSPECTION.)
2	Air mix actuator (See AIR MIX ACTUATOR REMOVAL/INSTALLATION.) (See AIR MIX ACTUATOR INSPECTION.)
3	Airflow mode actuator (See AIRFLOW MODE ACTUATOR REMOVAL/INSTALLATION.) (See AIRFLOW MODE ACTUATOR INSPECTION.)
4	Blower motor (See BLOWER MOTOR REMOVAL/INSTALLATION.) (See BLOWER MOTOR INSPECTION.)
5	Resistor (See RESISTOR REMOVAL/INSTALLATION.) (See RESISTOR INSPECTION.)
6	Magnetic clutch (See MAGNETIC CLUTCH DISASSEMBLY/ASSEMBLY.) (See MAGNETIC CLUTCH ADJUSTMENT.) (See MAGNETIC CLUTCH INSPECTION.)
7	Ambient temperature sensor (See AMBIENT TEMPERATURE SENSOR REMOVAL/INSTALLATION.) (See AMBIENT TEMPERATURE SENSOR INSPECTION.)
8	Evaporator temperature sensor (See EVAPORATOR TEMPERATURE SENSOR REMOVAL/INSTALLATION.) (See EVAPORATOR TEMPERATURE SENSOR INSPECTION.)
9	Refrigerant pressure switch (See REFRIGERANT PRESSURE SWITCH REMOVAL/INSTALLATION.) (See REFRIGERANT PRESSURE SWITCH INSPECTION.)
10	Climate control unit (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION.) (See CLIMATE CONTROL UNIT INSPECTION.)
11	A/C amplifier (See A/C AMPLIFIER INSPECTION [MANUAL AIR CONDITIONER].)
12	A/C relay (See RELAY INSPECTION.)
13	Blower relay (See RELAY INSPECTION.)
