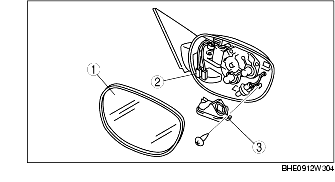

1. Disassemble in the order indicated in the table.
|
1
|
Outer mirror glass
|
|
2
|
Connector (vehicles with heated outer mirrors)
|
|
3
|
Ground illuminated light bulb
|
2. Assemble in the reverse order of disassembly.

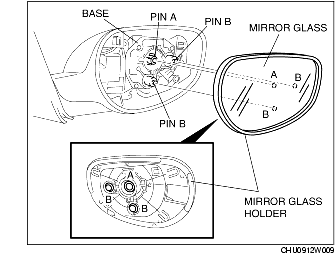

1. Press area A of the mirror glass so that area B moves outward.
2. Detach pin A while lifting up the inside of the mirror glass holder.
3. Pull out the mirror glass holder and detach pins B.
4. Remove the mirror glass holder and the mirror glass as a single unit.
1. Press area A of the mirror glass into the base to attach pin A.
2. Press areas B of the mirror glass into the base to attach pins B.
