AUDIO AMPLIFIER REMOVAL/INSTALLATION
id092000801100
Main Amplifier
1. Disconnect the negative battery cable.
2. Remove the following parts:
-
(1) Console (See CONSOLE REMOVAL/INSTALLATION.)
-
(2) Rear seat (See REAR SEAT REMOVAL/INSTALLATION.)
-
(3) Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)
-
(4) Rear pillar trim (See REAR PILLAR TRIM REMOVAL/INSTALLATION.)
-
(5) Rear package center trim, rear package side trim (See REAR PACKAGE TRIM REMOVAL/INSTALLATION.)

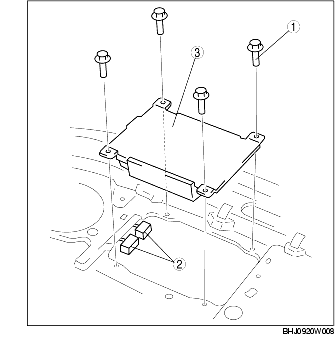

3. Remove in the order indicated in the table.
|
1
|
Bolt
|
|
2
|
Connector
|
|
3
|
Main amplifier
|
4. Install in the reverse order of removal.
Front Door Speaker Amplifier
1. Disconnect the negative battery cable.
2. Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION.)
3. Remove the front door speaker. (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION.)

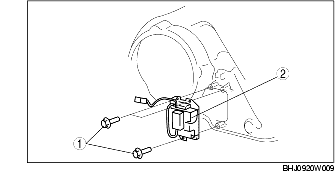

4. Remove in the order indicated in the table.
|
1
|
Bolt
|
|
2
|
Front door speaker amplifier
|
5. Install in the reverse order of removal.
