CYLINDER HEAD ASSEMBLY(II)


BME011010100505

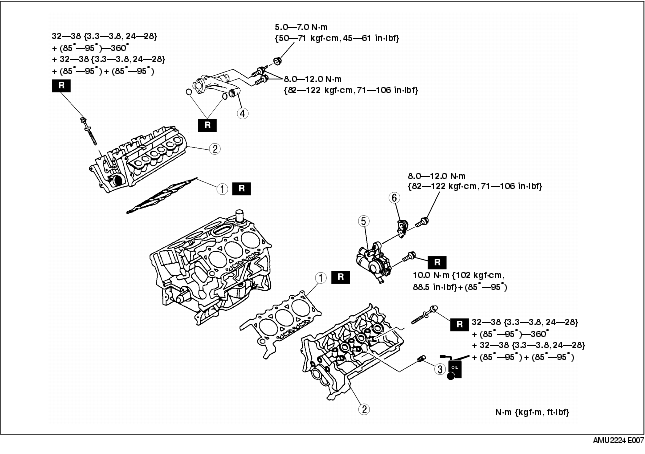

1. Assemble in the order indicated in the table.

.

1
Cylinder head gasket
2
Cylinder head
3
HLA
4
Water bypass tube
5
Water pump
6
Water pump drive belt tensioner

Cylinder Head Assembly Note

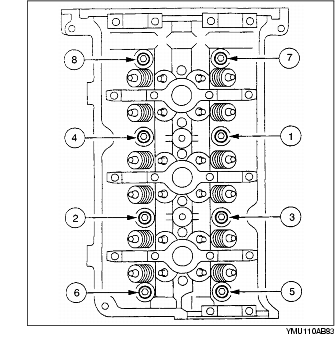

1. Tighten the cylinder head bolts in the order indicated in the figure in six steps.

(1) Tighten to 32- 38N·m {3.2 -3.9kgf·m, 23-28 ft·lbf}.
(2) Tighten 85°-95°.
(3) Loosen 360° (one full turn) in reverse order.
(4) Tighten to 32- 38N·m {3.2 -3.9kgf·m, 23-28 ft·lbf}.
(5) Tighten 85°-95°.
(6) Tighten 85°-95°.

Water Pump Assembly Note

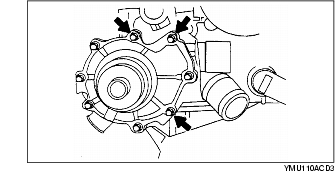

1. Install new bolts and tighten them in two steps.

(1) Tighten to 10.0 N·m {102 kgf·cm, 88.5 in·lbf}.
(2) Tighten 85°-95°.
